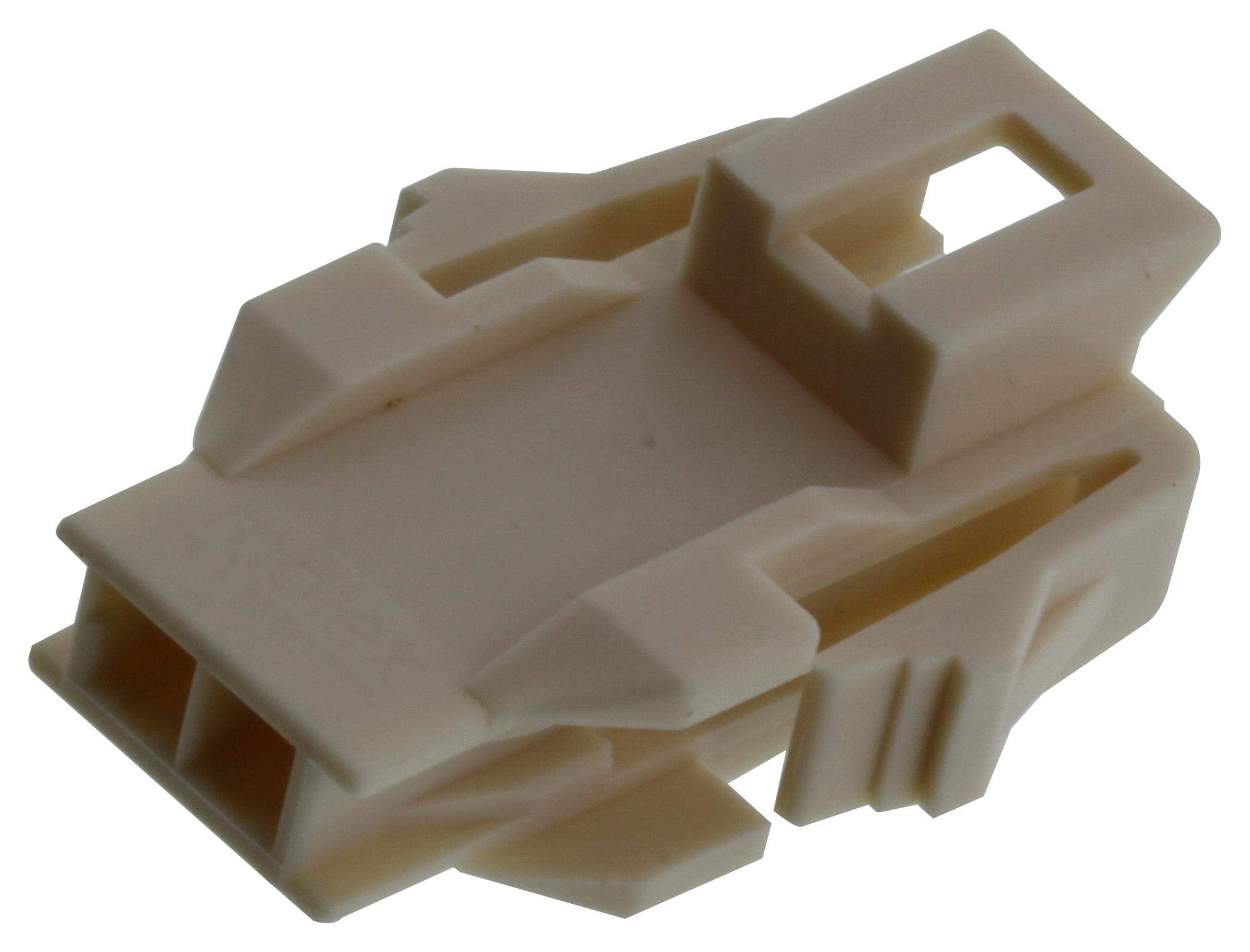

MOLEX 2002772202 Nano-Fit Power Connectors
Nano-Fit Power Connectors are compact, fully isolated, and feature multiple keying options, color coding, and secure retention. Designed for high-density PCBs, these connectors offer low mating force, excellent signal integrity, and proven reliability across various industrial, consumer, automotive, medical, and aerospace applications. They enable space-saving, multi-layer boards and quick assembly with anti-snag locks and audible mating indicators, ensuring safe, stable connections with minimal risk of cross-mating or terminal damage, perfect for demanding electronic systems and manufacturing environments.
MOLEX 2002772202 Nano-Fit Power Connectors Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms change over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: SN
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Receptacle Nylon UL 94V-0, Header LCP UL 94V-0
- Contact Material: High-conductivity copper
- Plating: Tin, 381) gold (15 mil), 762) gold (30 mil), Tin solder tail
- Operating Temperature: -40°C to +105°C (tin), -40°C to +115°C (gold)
- PCB Thickness: 1.60mm and 2.40mm
- RoHS Compliant: Yes
- Halogen Free: Yes
- Glow-Wire Capable: Yes
Buy the Nano-Fit Power Connectors 2002772202 – Reliable High-Density Power for Industrial Applications
Experience the trusted performance of Molex Nano-Fit Power Connectors. These compact, highly reliable connectors feature secure keying, secure retention, and low mating force, perfect for demanding industrial, medical, and automotive applications. Designed to save space on multi-layer PCBs, they ensure stable, high-quality electrical connections with excellent signal integrity. Easy to assemble with color coding and audible click features, they enhance productivity and reduce assembly errors. Choose Nano-Fit for durable, space-saving power solutions that meet today’s manufacturing challenges.
Get Molex Nano-Fit Power Connectors 2002772202 today—engineered for space-efficient and long-lasting electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 2002772202?
You can click on the BUY or RFQ button to purchase 2002772202 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002772202?
You can download the 2002772202 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002772202?
MOLEX
