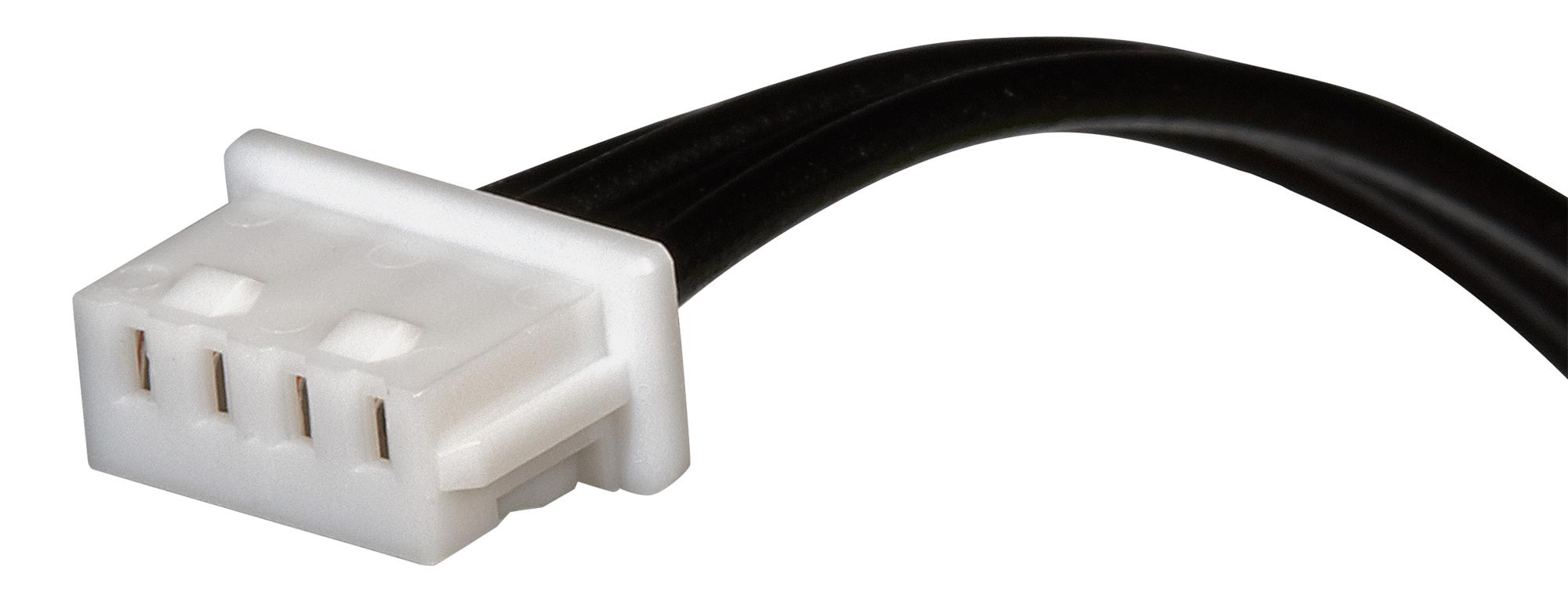

MOLEX 151340402 PicoBlade OTS Cable Assembly
The MOLEX 15134-0402 PicoBlade OTS cable assembly provides a pre-terminated solution for connecting PicoBlade connectors. With a length of 150.00mm and 4 circuits, this assembly is suitable for various applications requiring compact and reliable connections. Constructed with phosphor bronze and tin plating, it ensures excellent conductivity and durability. The female-to-female gender configuration and natural resin color make it a versatile choice for diverse industrial and commercial applications.
MOLEX 151340402 PicoBlade OTS Cable Assembly Specifications:
- overview: PicoBlade Connector System
- product_family: Cable Assemblies
- assembly_configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- product_literature_order_no: 987651-6143
- upc: 889056870856
- cable_length: 150.00mm
- circuits_loaded: 4
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 1.200/g
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- sales_drawing: 2012341356-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/30/2017
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048
