MOLEX 5054331071 Wire-to-Board Connectors

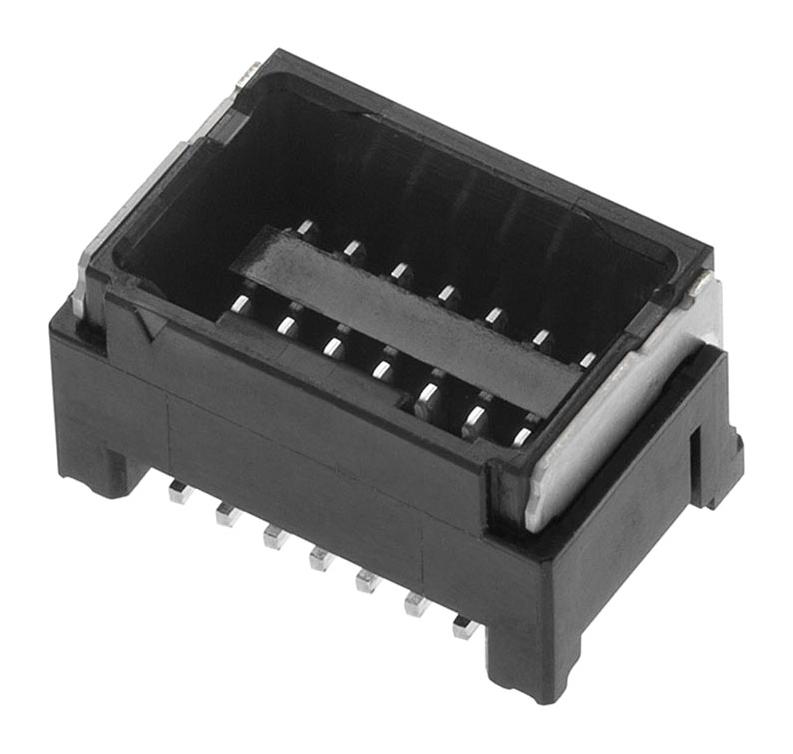

The Micro-Lock PLUS Vertical Header is a reliable wire-to-board connector system with a 1.25mm pitch, dual row configuration, and Tin-Bismuth plating. Designed for high durability, it supports up to 50V AC/DC, with a maximum of 10 mating cycles. Made from polyamide with brass metal parts, it is suitable for applications requiring a temperature range of -40°C to +105°C. It features a PCB locator, retention options, and is surface mount compatible. The connector is RoHS, China RoHS, and REACH compliant, with a net weight of 671.650 mg and compatibility with Micro-Lock PLUS receptacles.
MOLEX 5054331071 Wire-to-Board Connectors Specifications:
- Pitch - Mating Interface: 1.25mm
- Circuits (Loaded): 10
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Durability (mating cycles max): 10
- Temperature Range - Operating: -40°C to +105°C
- Voltage - Maximum: 50V AC/DC
- Current - Maximum per Contact: Not specified
- Surface Mount Compatible (SMC): Yes
- Net Weight: 671.650 mg
- Orientation: Vertical
- Packaging Type: Embossed Tape on Reel
- Lock to Mating Part: Yes
- Polarity: Polarized to Mating Part and PCB
- RoHS, China RoHS, REACH compliant
Buy the Molex 5054331071 – Reliable Micro-Lock PLUS for Industrial Applications
Secure your electronic assembly with the Micro-Lock PLUS Vertical Header, offering precise 1.25mm pitch, dual row design, and durable Tin-Bismuth plating. Designed for high-reliability applications, it withstands up to 50V AC/DC and 10 mating cycles. Made from polyamide with brass contacts, it suits operating temperatures from -40°C to +105°C. The connector features surface mount compatibility, PCB locator, and retention options. RoHS, China RoHS, and REACH compliant, perfect for automation systems, control panels, and industrial equipment requiring robust connections.
Buy Molex 5054331071 now and experience unmatched reliability and performance in high-density electronic connections.
