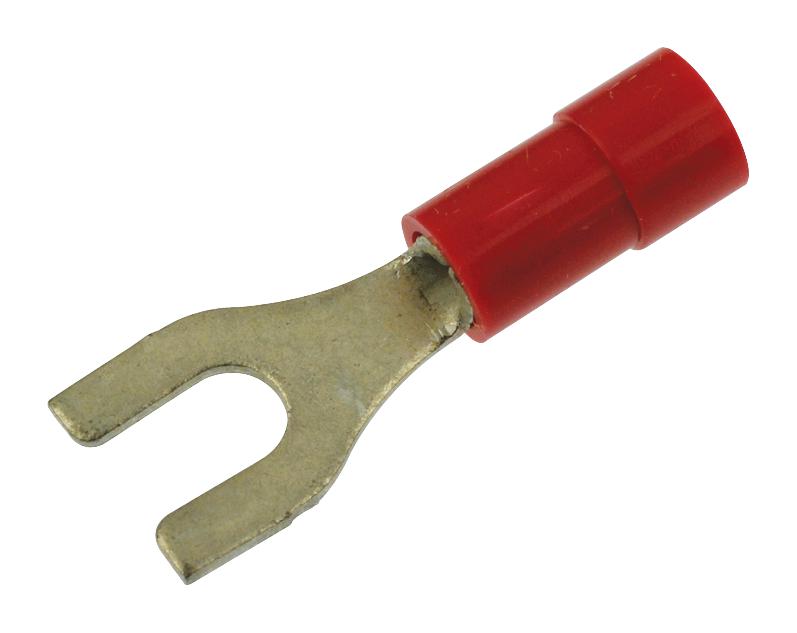

MOLEX 191310038 InsulKrimp Spade Tongue Terminal
The MOLEX 0191310038 InsulKrimp Block Spade Tongue Terminal is a solderless termination solution for connecting wires to terminals or circuit boards. Designed for 18 to 22 AWG wire, this terminal features a stud size of 6 (M3.5) and a length of 19.94mm. The InsulKrimp design ensures a secure and consistent crimp, making it suitable for various industrial applications including automotive, appliance, and automation systems. Its closed barrel design and tin plating provide excellent corrosion resistance and electrical conductivity.
MOLEX 191310038 InsulKrimp Spade Tongue Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Block Spade Tongue Terminal for 18 to 22 AWG Wire, Stud Size 6 (M3.5), Length 19.94mm
- series: 19131
- product_name: InsulKrimp
- type: Spade Block
- upc: 800753101616
- barrel_type: Closed
- color_resin: Natural
- flammability: 94V-0
- insulation: PVC
- material_plating_mating: Tin
- net_weight_g: 0.617
- packaging_type: Bag
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- stud_size: 5-6 (M3-3.5)
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 3.70mm
- wire_size_awg: 18, 20, 22
- wire_size_mm2: 0.35-0.80
- lead_free_process_capability: N/A
- engineering_number: AA-234-06X
- product_specification: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001
- sales_drawing: AACD20301
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- application_tooling_premium_grade_hand_crimp_tool: 640010100
- application_tooling_hand_crimp_tool: 640010300
- application_tooling_crimp_head_at200_pneumatic_hand_tool: 640050100
- application_tooling_crimp_head_at200_pneumatic_hand_tool_2: 640050300
