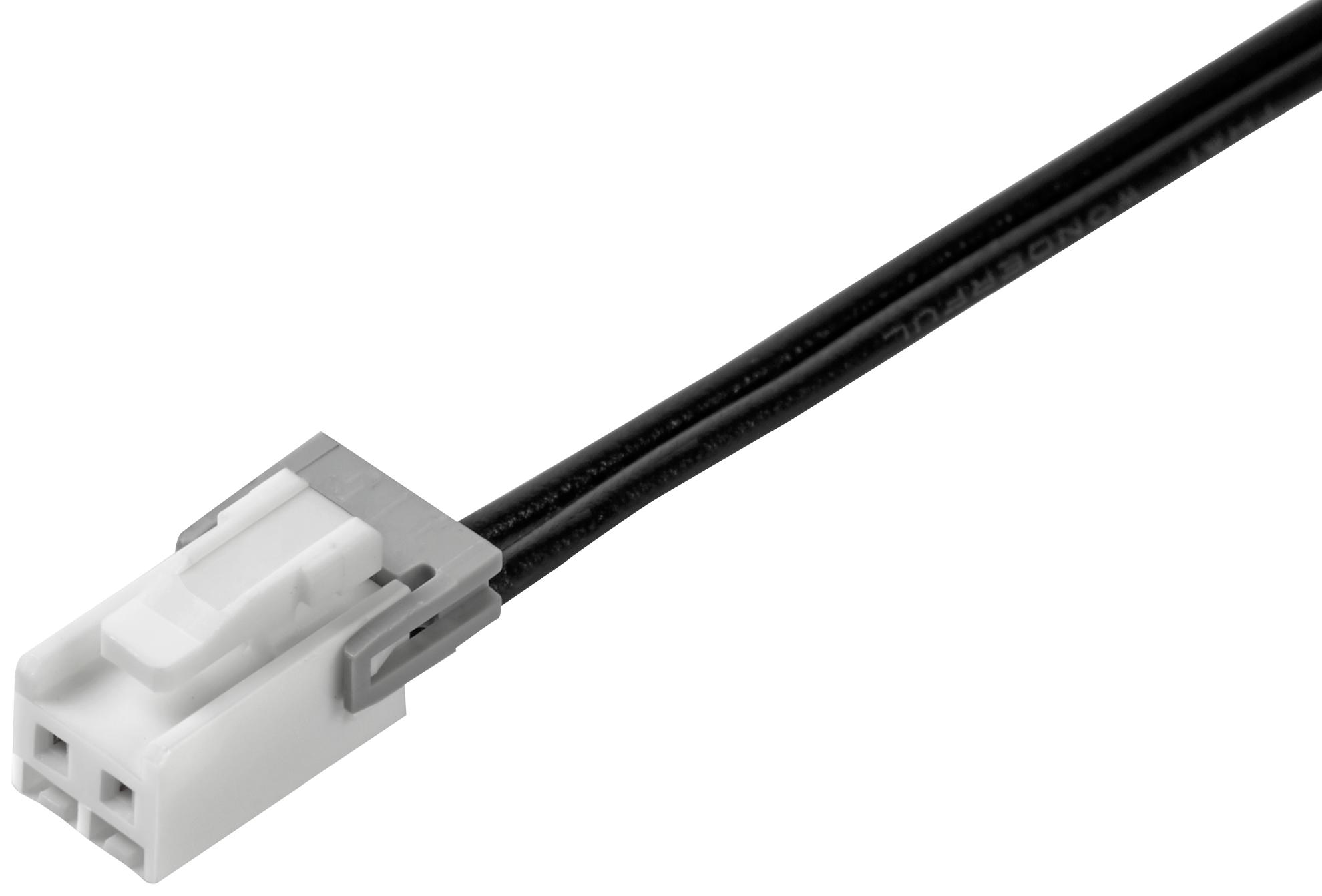

MOLEX 151370206 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0206 is a Mini-Lock wire-to-board connector assembly designed for signal transmission in various applications. This dual-ended connector features a 2.50mm pitch and a female-female configuration, offering a secure and reliable connection. The assembly includes a 600.00mm cable length and is constructed with copper alloy and polyester materials, providing durability and performance. It is RoHS compliant and suitable for applications requiring a compact and robust wire-to-board connection.
MOLEX 151370206 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 600.00mm
- circuits_loaded: 2
- color_resin: Natural
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 7.020/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- plating_min_mating: 0.889µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- sales_drawing: 151370200-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
