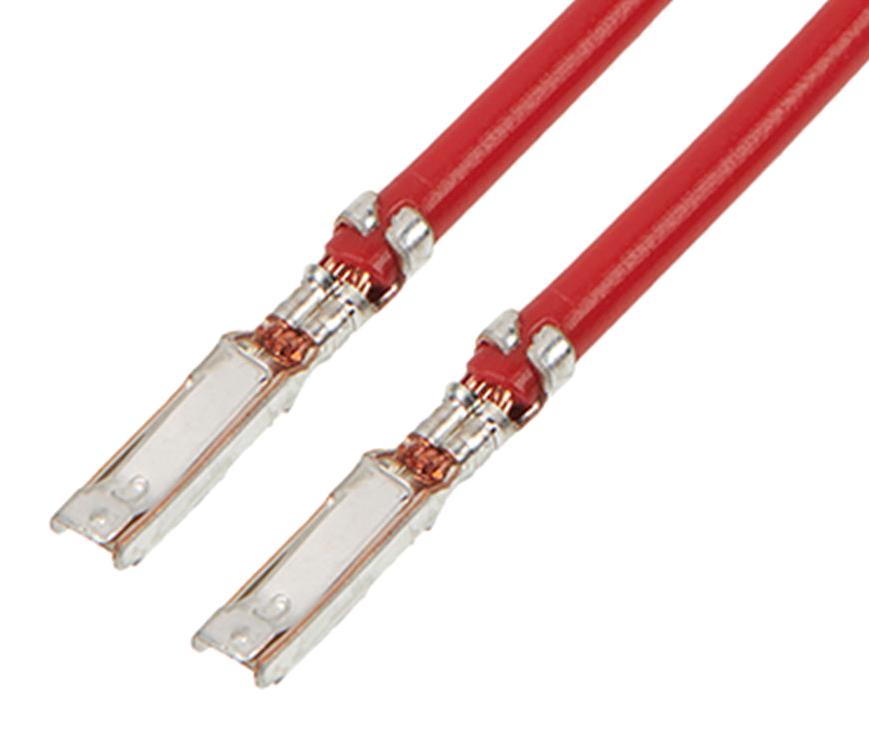

MOLEX 2178401124 Mizu-P25 Cable Assembly
The MOLEX 217840-1124 is a pre-crimped lead cable assembly designed for signal wire-to-wire applications. It utilizes Mizu-P25 female-to-female connectors, ensuring a secure and reliable connection. The assembly features tin plating for enhanced conductivity and corrosion resistance, a 300mm length, and is constructed with phosphor bronze and UL 10002 wire. It is ideal for applications requiring a pre-terminated cable solution, simplifying assembly and reducing labor costs.
MOLEX 2178401124 Mizu-P25 Cable Assembly Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- crimp_terminals_overview: Off-the-Shelf Pre-Crimped Leads
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 2.160/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842149199
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- drawing_number: 2178401121-000
Buy the 217840-1124 MOLEX Mizu-P25 Cable Assembly | myMectronic
Purchase the MOLEX 217840-1124 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2178401124?
You can click on the BUY or RFQ button to purchase 2178401124 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2178401124?
You can download the 2178401124 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2178401124?
MOLEX
