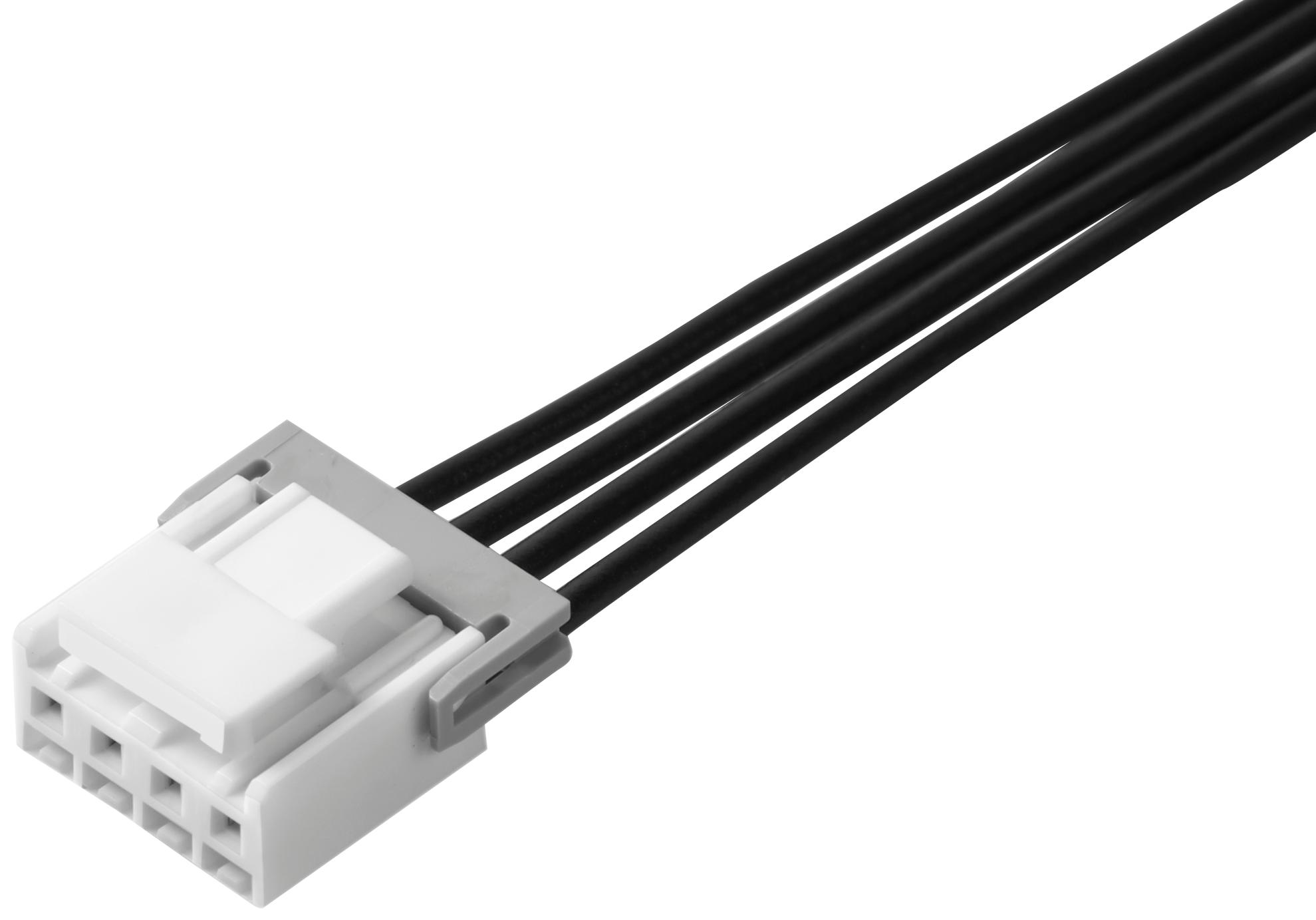

MOLEX 151370400 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0400 is a Mini-Lock wire-to-board connector assembly, offering a robust and reliable connection solution for signal transmission in diverse industrial applications. This connector features a 2.50mm pitch, a female-female gender configuration, and a 50.00mm cable length, making it ideal for connecting boards and wires in compact spaces. Constructed with copper alloy and plated with matte tin for both mating and termination interfaces, it ensures excellent conductivity and durability. The natural polyester resin overmold provides insulation and protection against environmental factors. It is RoHS compliant and designed for signal applications.
MOLEX 151370400 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 50.00mm
- circuits_loaded: 4
- color_resin: Natural
- material_metal: Copper Alloy
- plating_mating: Matte Tin (0.889µm min)
- plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 3.270/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
