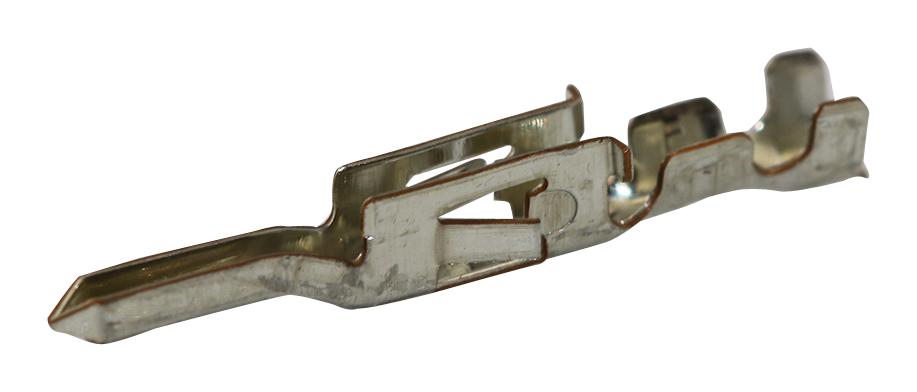

MOLEX 39000068 Mini-Fit Jr. Power Terminal
Mini-Fit Jr. Power Connectors feature a male crimp terminal made from tin over phosphor bronze, suitable for 22-28 AWG wires. Designed for reliable crimping, these terminals are assembled in a bag and are compatible with various Mini-Fit Jr. component housings. They support high current up to 9.0A and a maximum voltage of 600V, ensuring durable electrical connections. The terminals exhibit excellent corrosion resistance and are RoHS compliant, making them ideal for power applications where safety, reliability, and compliance are critical.
MOLEX 39000068 Mini-Fit Jr. Power Terminal Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 22, 24, 26, 28
- Wire Diameter: 0.90-1.80mm
- Durability (mating cycles): 30
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Packaging Type: Bag
- Net Weight: 108.000/mg
- Plating min - Mating: 0.889um
- Plating min - Termination: 0.889um
- Termination Interface: Crimp or Compression
- Gender: Male
- Application: Power, Wire-to-Wire
- RoHS: Compliant, China RoHS Green Image
- Status: Active
- Product Family: Mini-Fit
- Packaging Specification: PK-5556-003
- Reference - Drawing Numbers: PS-5556-001-001, PS-5556-002-001, TS-5556-002-001
Buy the Buy Molex Mini-Fit Jr. Power Connectors Part Number 0039000068 Online
Order the Molex Mini-Fit Jr. Power Terminal online today for high-quality, reliable connections designed for power and electrical applications. Made from tin over phosphor bronze, this male crimp terminal supports 22-28 AWG wires, delivering excellent current capacity of up to 9A and voltage up to 600V. The terminals are RoHS compliant and feature durable tin plating for long-lasting corrosion resistance. Perfect for wire-to-wire power connections in various electronic and electrical systems, they come in convenient bag packaging and ensure secure, efficient crimping and electrical contact integrity.
Buy Molex 0039000068 now and experience unmatched reliability and high-current power connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 39000068?
You can click on the BUY or RFQ button to purchase 39000068 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39000068?
You can download the 39000068 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39000068?
MOLEX
