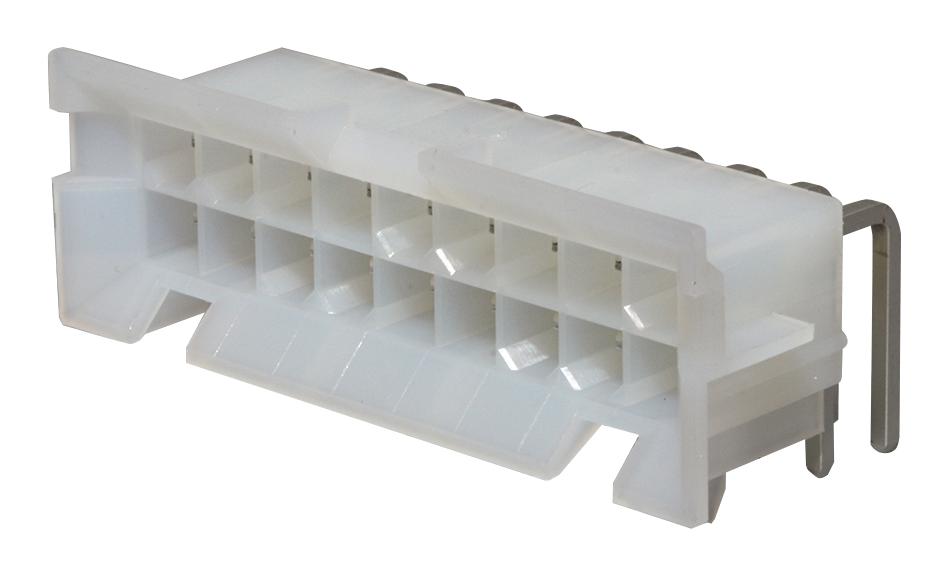

MOLEX 15246180 Mini-Fit BMI Connector
The Mini-Fit BMI Connector is a versatile, high-current, board-to-board connector featuring a dual-row, right-angle design with a snap-in plastic PCB lock. Made from PA Polyamide Nylon 6/6 with UL 94V-2 flammability rating, it supports up to 13A per circuit and 600V. Suitable for applications requiring durable, reliable connections, it offers a maximum of 30 mating cycles and is compliant with RoHS, ELV, and UL standards. Its compact design includes a 3.30mm pitch, with options for PCB retention, polarization, and shrouding, making it ideal for power and signal connections in electronic assemblies.
MOLEX 15246180 Mini-Fit BMI Connector Specifications:
- Material - Resin: PA Polyamide Nylon 6/6
- Flammability: UL 94V-2
- Current - Maximum per Contact: 13A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40°C to +105°C
- Orientation: Right Angle
- Number of Rows: 2
- Pitch - Mating Interface: 3.30mm
- PCB Tail Length: 1.80mm
- Net Weight: 6.968g
- Durability (mating cycles max): 30
- Color - Resin: Natural
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Shrouded: No
- Stackable: No
- Surface Mount Compatible: No
Buy the Molex Series Mini-Fit BMI: 15246180
Purchase the Molex Mini-Fit BMI Connector online now to benefit from its robust design, high current capacity, and compliance with industry standards. Ideal for power and signal applications, this connector features a dual-row, right-angle configuration with a snap-in lock for secure PCB attachment. Made from durable nylon with tin plating, it supports up to 13A per circuit at 600V, with a maximum of 30 mating cycles. Enhance your electronic assemblies with this reliable, versatile connector available for quick online ordering.
Order your Molex Series Mini-Fit BMI connector today and ensure reliable power and signal connections in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 15246180?
You can click on the BUY or RFQ button to purchase 15246180 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246180?
You can download the 15246180 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246180?
MOLEX
