MOLEX 2183971022 Datasheet & Stock

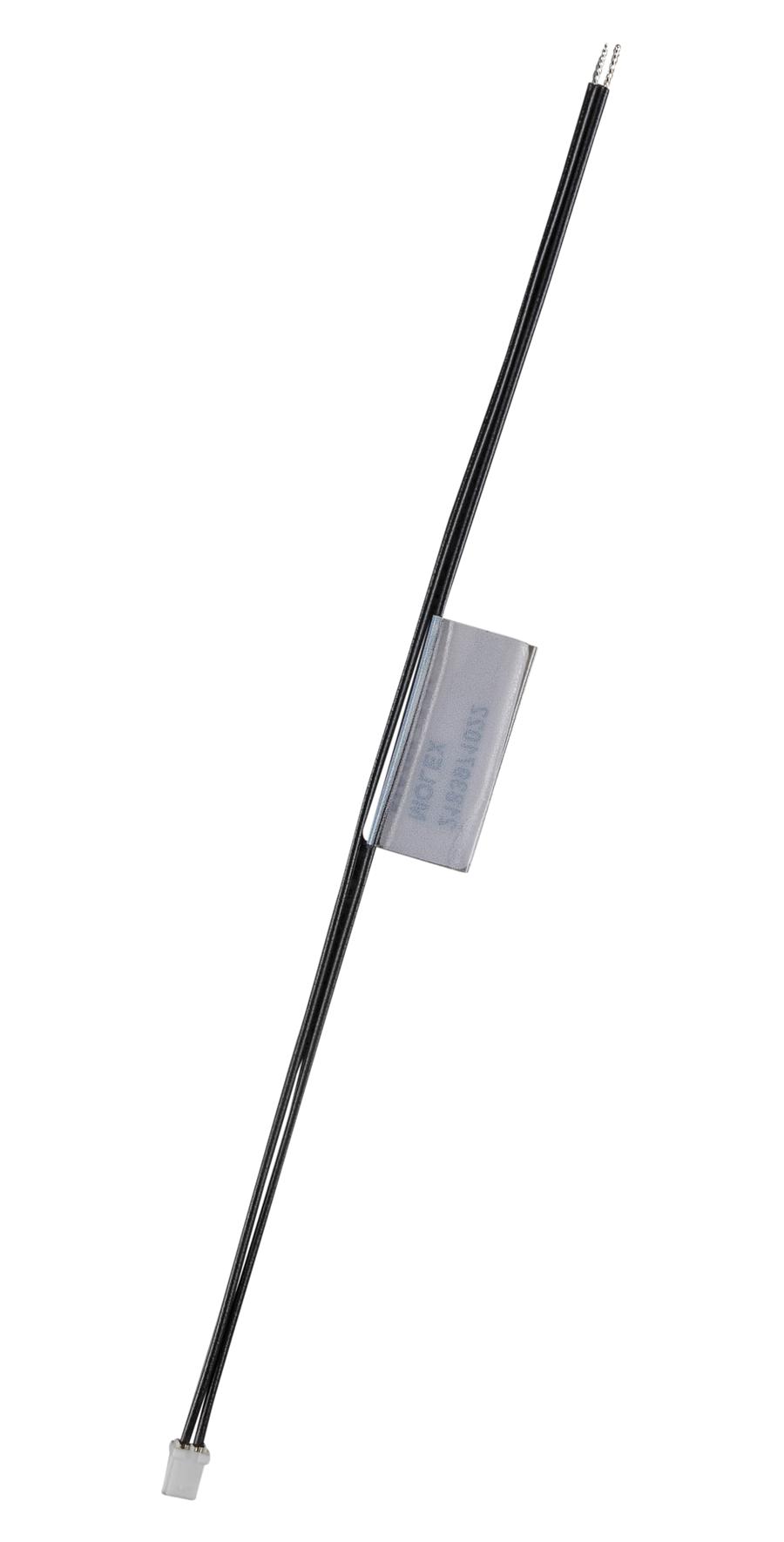

The Pico-Spox 1.5mm pitch cable assembly series features off-the-shelf (OTS) discrete wire cable connectors designed for easy prototyping and preproduction applications. These assemblies utilize popular terminal types compatible with widely available crimping tools, simplifying assembly processes. Equipped with vertical and right-angle single-row headers featuring a unique friction lock, they provide secure terminal retention and latch protection. The compact 1.5mm pitch connector offers reliable mating with space savings of approximately 30% compared to standard 2mm wire-to-board connectors. Suitable for use in consumer electronics, industrial automation, and medical technology, these cable assemblies are certified by UL and CSA, support up to 250VAC and 2.5A per contact, and use UL 10002 standard 24 AWG wire. The nylon housing, phosphor bronze contacts with tin plating, and natural resin color ensure durability, with a maximum operational lifespan of 10 cycles and an operating temperature range from -10°C to +105°C.

View 2183971022Datasheet [pdf]
