MOLEX 2064600022 Micro-Fit+ Crimp Terminal

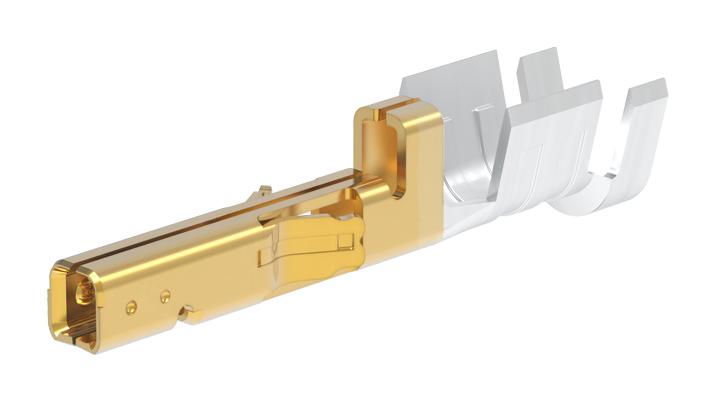

The MOLEX 206460-0022 is a Micro-Fit+ crimp terminal, a key component within the Micro-Fit+ connector system. Designed for robust wire-to-board connections, this terminal is ideal for a variety of industrial applications including power distribution and signal transmission. It utilizes high copper alloy construction with gold and matte tin plating to ensure excellent conductivity and corrosion resistance. The terminal is compatible with 18 AWG wire and is rated for a maximum current of 12.5A and a voltage of 600V AC/DC. Its active lifecycle status and RoHS compliance make it a suitable choice for modern electronic designs.
MOLEX 2064600022 Micro-Fit+ Crimp Terminal Specifications:
- Series: 206460
- Application: Wire-to-Board
- Gender: Female
- Material - Metal: High Copper Alloy
- Material - Plating: Gold, Matte Tin
- Durability (mating cycles max): 200
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC (RMS)/DC
- Wire Insulation Diameter: 1.85mm
- Wire Size AWG: 18
- Wire Size mm²: 0.82
- Net Weight: 0.069/g
- Packaging Type: Reel
- Termination Interface: Style: Crimp or Compression
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
