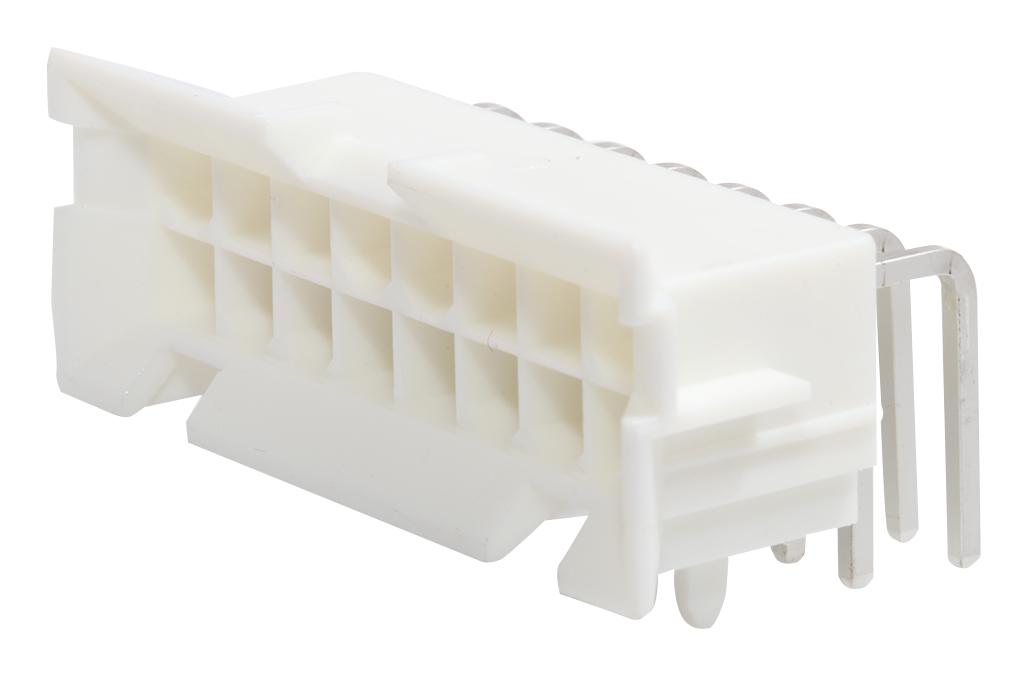

MOLEX 15249164 Power Connector
The Mini-Fit BMI Header is a high-quality, dual-row, right-angle connector designed for PCB applications, supporting up to 16 circuits with durable PA polyamide nylon 6/6 housing. Features include a snap-in plastic peg PCB lock, reliable tin-plated brass contacts, and compatibility with power, board-to-board, and wire-to-board connections. Rated for 13A per circuit and up to 600V, it withstands a temperature range of -40°C to +105°C, making it ideal for industrial and electronic equipment requiring secure and versatile power connections.
MOLEX 15249164 Power Connector Specifications:
- Number of Circuits: 16
- Orientation: Right Angle
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PA Polyamide Nylon 6/6, UL 94V-0
- Color - Resin: Natural (White)
- Max Mating Cycles: 30
- Flammability: UL 94V-0
- Glow-Wire Capable: No
- Lock to Mating Part: Yes
- PC Tail Length: 3.30mm
- PCB Thickness - Recommended: 1.80mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 13A
- Voltage - Maximum: 600V
- Packaging: Tray
- Mating Pitch: 2.54mm
Buy the Molex 0015249164 – Reliable Power Connector for Industrial Applications
Purchase the Molex Mini-Fit BMI Power Connector online today for your industrial, electronic, or power equipment. This high-quality connector features 16 circuits, a right-angle design, reliable tin-plated contacts, and a robust PA polyamide nylon housing. Rated for up to 13A per circuit and 600V, it offers excellent performance across a temperature range of -40°C to +105°C. Assembly is seamless with a PCB lock, ensuring secure connections for demanding industrial and electronic applications. Order now for fast delivery and guaranteed quality.
Get Molex 0015249164 today—built for precision and long-lasting durability in industrial power and PCB connections.
Frequently Asked Questions
Where can I buy MOLEX 15249164?
You can click on the BUY or RFQ button to purchase 15249164 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15249164?
You can download the 15249164 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15249164?
MOLEX
