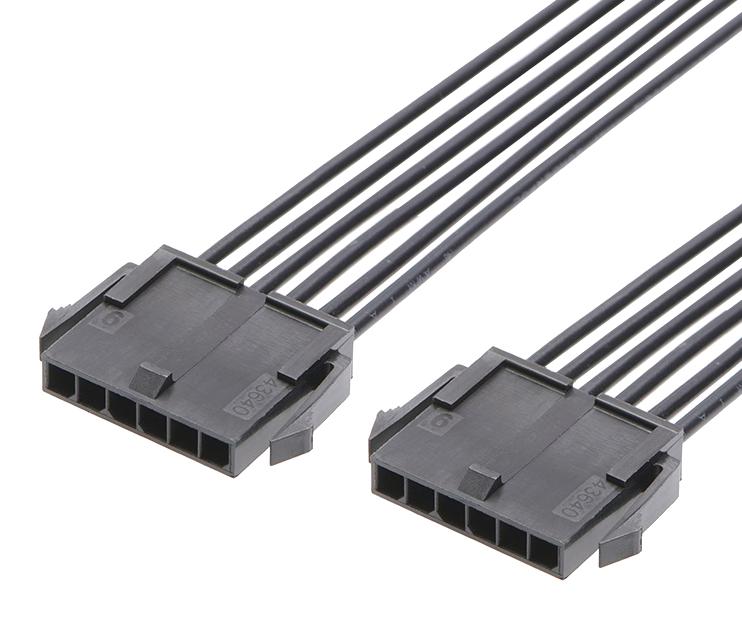

MOLEX 2147502022 Micro-Fit 3.0 Cable Assembly
The MOLEX 214750-2022 is a Micro-Fit 3.0 Female-to-Female Off-the-Shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly features a single row configuration, a 300mm length, and is suitable for connecting Micro-Fit 3.0 connectors. The gold plating on the mating interface ensures excellent conductivity, while the tin plating on the termination provides a robust connection. It is commonly used in industrial equipment, consumer electronics, and automotive applications where reliable power distribution is required.
MOLEX 2147502022 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Micro-Fit 3.0 Both Ends
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 7.692/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- single_ended: No
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264585069
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 43640, 200875, 43650
- drawing_number: 2147502021-000
