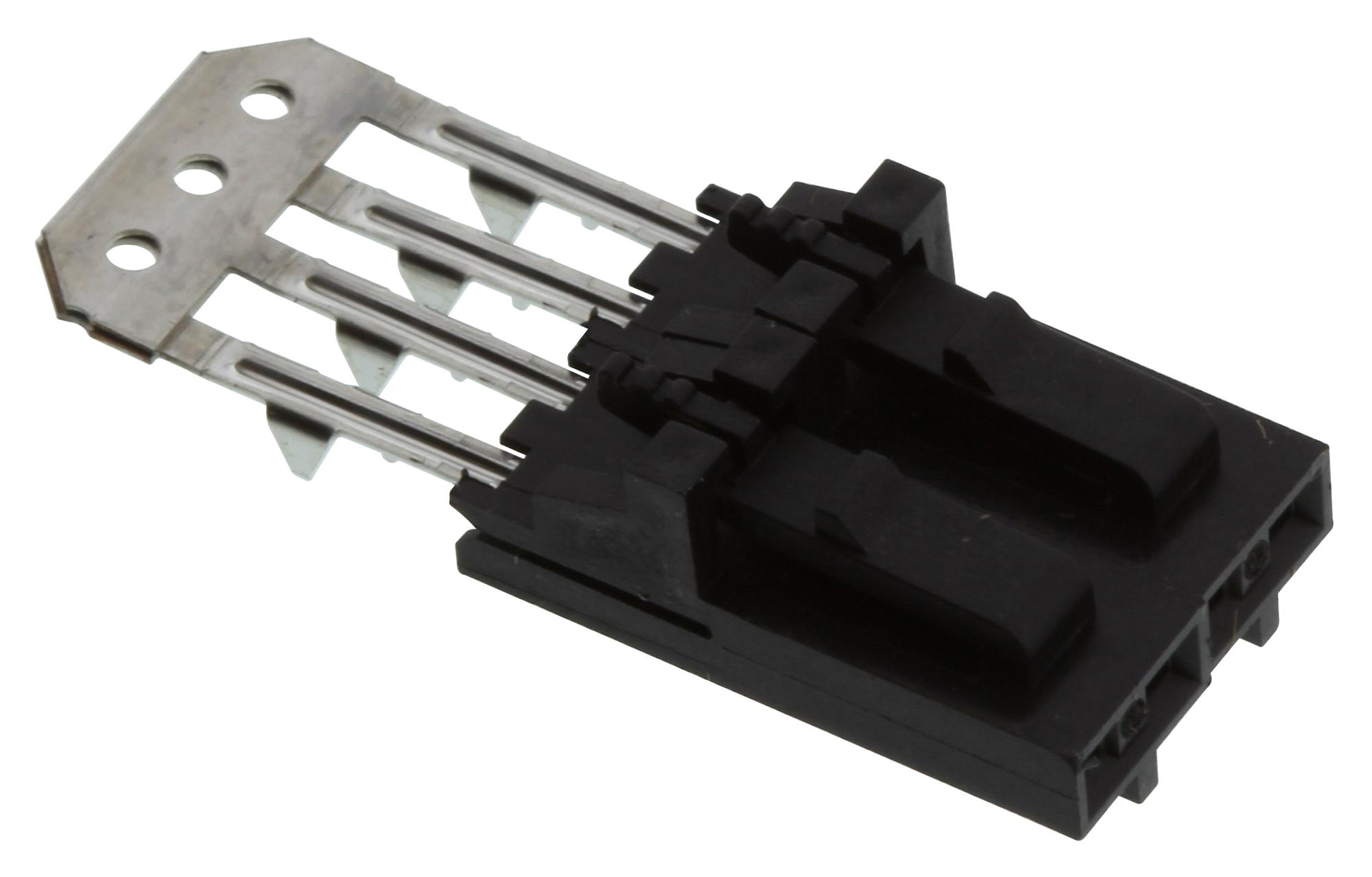

MOLEX 15388020 FFC/FPC Connector
The SL Modular Connectors are versatile FFC/FPC connectors designed for reliable electronic connections in industrial and consumer electronics. This model features a single row, female receptacle with two circuits, and a 2.54mm pitch for secure connections. Constructed from halogen-free, flammability-rated materials with tin plating, these connectors support up to 25 mating cycles and operate over a temperature range of -40°C to +105°C. Suitable for PCB mounting, they are packaged in tubes, ensuring durability and ease of installation for various electronic applications.
MOLEX 15388020 FFC/FPC Connector Specifications:
- Series: 70430
- Configuration: Single row, female receptacle
- Number of Circuits: 2
- Pitch: 2.54mm
- Material - Metal: Phosphor Bronze
- Plating - Mating and Termination: Tin
- Body Material: Polyester Alloy Resin, Halogen-Free, Flame Retardant UL 94V-0
- Operating Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 1.0A, 2.0A
- Maximum Voltage: 250V
- Durability: Up to 25 mating cycles
- PCB Thickness: 1.60mm and 2.40mm recommended
- Packaging: Tube, Packaging Specification PK-70873-0001-001
- Compatible With: SL Header 70541, 70543, 70545, 70551 and others
- RoHS Compliant: Yes
- Agency Certifications: CSA LR19880, UL E29179, EU ELV
- Color: Black
- Temperature Range: -40°C to +105°C
Buy the Molex 15388020 – Reliable FFC/FPC Connectors for Industrial Applications
Enhance your electronic assembly with this high-quality FFC/FPC connector designed for reliable PCB connections. Featuring 2.54mm pitch, robust tin plating, and a compact 2-circuit design, it supports up to 25 mating cycles and operates efficiently at temperatures from -40°C to +105°C. Ideal for industrial and consumer electronics, this connector ensures secure, durable connections. Available online, it simplifies your manufacturing process with easy installation, high performance, and compliance with RoHS and safety standards, making it a smart choice for your projects.
Buy Molex 15388020 now and experience unmatched reliability and performance for your electronic connection needs.
