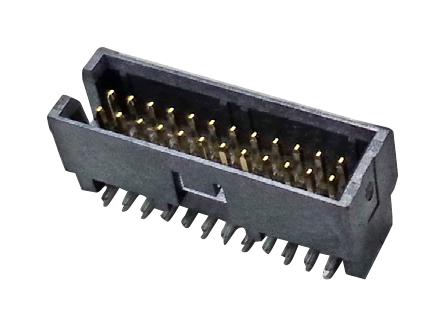

MOLEX 2009890024 Slim-Grid Board-to-Board Connector
The MOLEX 200989-0024 Slim-Grid connector is a robust board-to-board solution designed for reliable signal transmission. Featuring a surface mount termination interface and a vertical orientation, this connector is suitable for a wide range of applications including consumer electronics, industrial automation, and telecommunications equipment. Its shrouded design provides protection against accidental shorts and misalignments, while the gold-plated mating interface ensures low contact resistance and excellent signal integrity. The connector supports up to 4.3 Amps per pole with a single contact powered and 1.4 Amps with all contacts powered.
MOLEX 2009890024 Slim-Grid Board-to-Board Connector Specifications:
- circuits_loaded: 24
- circuits_maximum: 24
- current_max_per_pole: 4.3 Amps (1 contact powered)
- current_max_per_pole_all_contacts: 1.4 Amps
- voltage_max: 125V AC
- plating_min_mating: 0.051µm
- plating_min_termination: 2.000µm
- pitch_mating_interface: 1.27mm
- pitch_termination_interface: 1.27mm
- material_metal: Copper Alloy
- material_plating_mating: Gold
- material_plating_termination: Matte Tin
- material_resin: Liquid Crystal Polymer
- temperature_range_operating: -55°C to +105°C
- durability_mating_cycles_max: 500
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- guide_to_mating_part: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- shrouded: Fully
- lead_free_process_capability: REFLOW
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
- duration_at_max_process_temperature_seconds: 010
- elv_compliant: Yes
- rohs_compliant: Yes
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- packaging_type: Tube
- number_of_rows: 2
- orientation: Vertical
