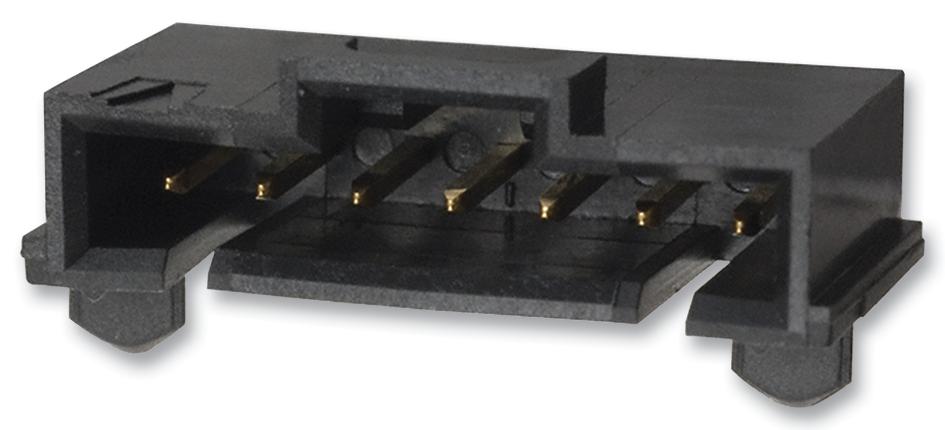

MOLEX 15913054 Wire-to-Board Connector
The 2.54mm pitch SL modular connector is a low-profile, surface-mount, wire-to-board header with a single row, right-angle design, and a 3.05mm pocket. It features tin plating, a shrouded configuration with a press-fit plastic peg, and supports up to 5 circuits with a maximum of 5 loaded circuits. Made of high-temperature thermoplastic with brass and phosphor bronze contacts, it offers reliable electrical performance with a maximum current of 3.0A per contact and a voltage of 250V. Suitable for industrial and electronic applications requiring durable, RoHS-compliant connectors.
MOLEX 15913054 Wire-to-Board Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 5
- Maximum Circuits (Loaded): 5
- Color - Resin: Black
- Material - Metal: Brass, Phosphor Bronze
- Plating - Mating: Tin
- Plating - Termination: Tin
- Temperature Range - Operating: -40°C to +105°C
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 3.0A
- Flammability: 94V-0
- Durability (Mating Cycles max): 25
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tube
- Shrouded: Yes
- Stackable: No
- Termination Interface: Surface Mount
- RoHS Compliant: Yes
- UL and CSA Certified: Yes
Buy the Molex 15913054 – Reliable Wire-to-Board Connectors for Industrial Applications
Purchase the Molex 15913054 wire-to-board connector online today for a dependable and high-quality connection solution. Designed for industrial and electronic applications, this 2.54mm pitch, surface-mount header features a durable tin-plated contact, right-angle design, and shrouded protection. It supports up to five circuits with a maximum current of 3A per contact and is RoHS compliant. Ideal for engineers seeking reliable, easy-to-mount connectors with excellent electrical properties, ensuring long-term performance in demanding environments.
Buy Molex 15913054 now and experience unmatched reliability and performance with high-current capacity and RoHS compliance.
Frequently Asked Questions
Where can I buy MOLEX 15913054?
You can click on the BUY or RFQ button to purchase 15913054 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15913054?
You can download the 15913054 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15913054?
MOLEX
