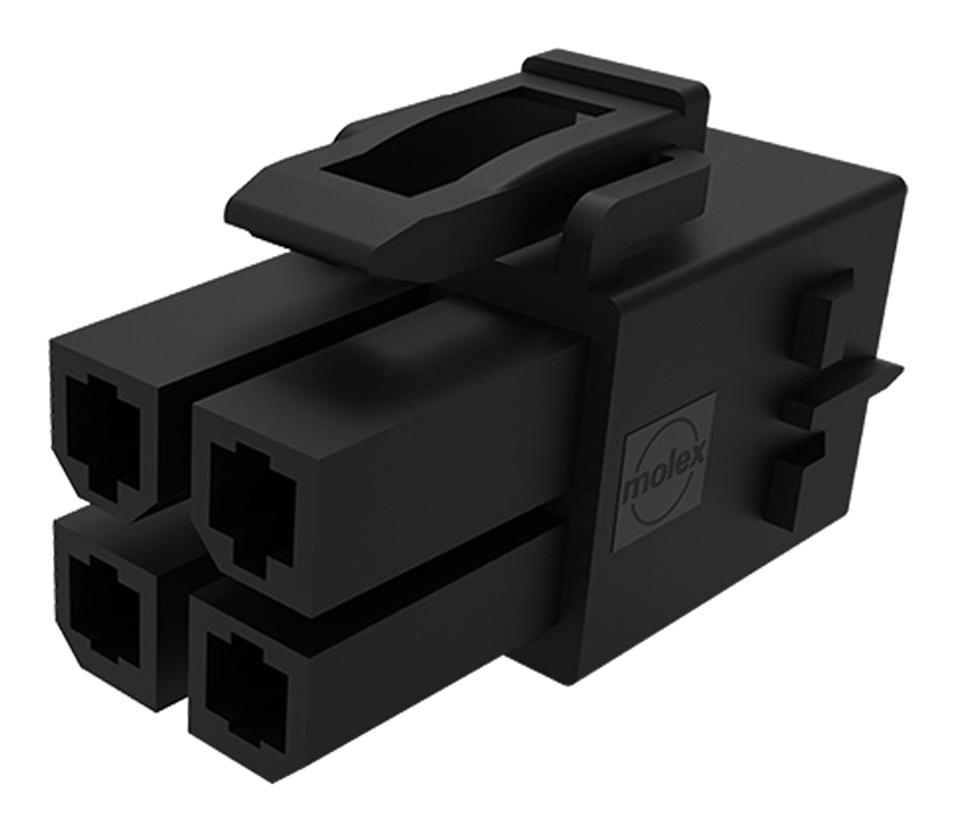

MOLEX 1716920204 Mega-Fit Receptacle Housing
The MOLEX 171692-0204 is a Mega-Fit receptacle housing, part of the 171692 series, engineered for robust power connections in various applications including wire-to-board and wire-to-wire systems. This housing is characterized by its dual-row design accommodating 4 circuits, and is manufactured from Nylon resin, ensuring durability and reliability. It is Glow-Wire Capable and polarized to the mating part, enhancing connection security. The housing is compatible with Mega-Fit Headers and Plug Housings, and utilizes Mega-Fit TPA terminals for optimized performance. Operating within a temperature range of -40°C to +105°C, this connector is suitable for demanding industrial environments.
MOLEX 1716920204 Mega-Fit Receptacle Housing Specifications:
- circuits_maximum: 4
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.640
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.70
- pitch_termination_interface_mm: 5.70
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°C, -40° to +120°C
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free: Not Low-Halogen
- rohs_phthalates: Not Contained
