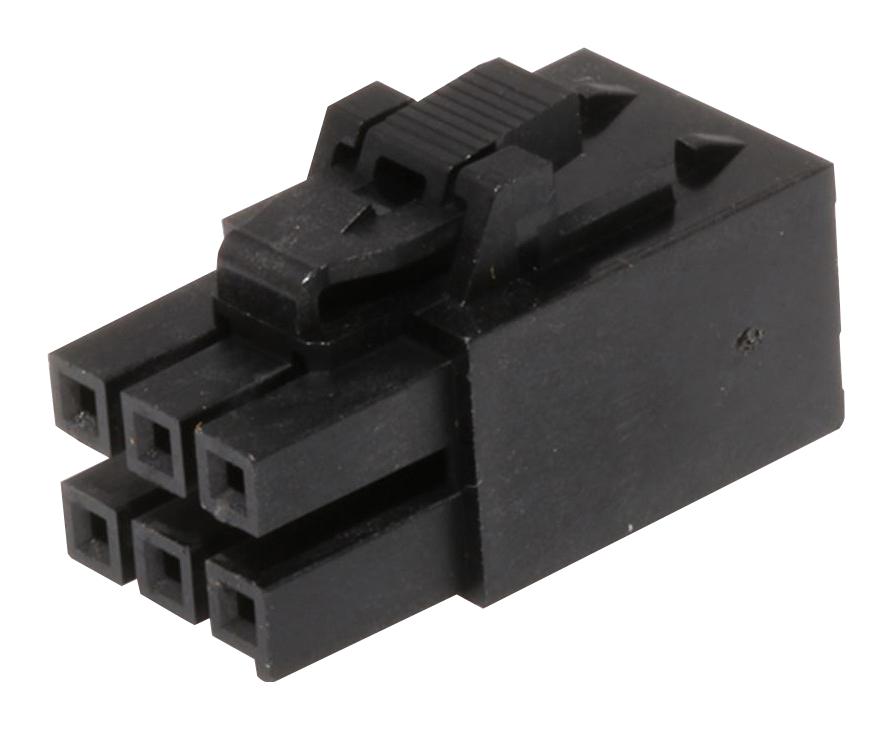

MOLEX 1722581106 Power Connector
The Ultra-Fit TPA Receptacle Housing offers a 3.50mm pitch with dual row configuration and six circuits, ideal for compact power and wire-to-board connections. Made from durable nylon with achieving a UL 94V-0 flammability rating, it features a black color resin, polarized for secure mating, and lock to mating part for enhanced stability. Operating within a temperature range of -40°C to +120°C and rated for 14.0A current per contact, it suits various power applications requiring reliable, high-performance electrical connections. The receptacle complies with RoHS, Halogen-Free, and Low-Halogen standards, conforming to industry safety and environmental regulations.
MOLEX 1722581106 Power Connector Specifications:
- Pitch: 3.50mm
- Circuits: 6
- Color: Black
- Material: Nylon, UL 94V-0
- Flammability: UL 94V-0
- Temperature Range: -40°C to +120°C
- Current Maximum: 14.0A per contact
- Gender: Receptacle
- Number of Rows: 2
- Lock to Mating Part: Yes
- Polarized: Yes
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Net Weight: 1.770g
- Packaging: Bag
- Agency Certifications: UL, CSA
Buy the Molex Series Ultra-Fit Power Connectors: 1722581106
Purchase the Molex Ultra-Fit Power Connector in the 172258 Series today for high-performance electrical connections. Designed with a 3.50mm pitch and dual row configuration, it features six circuits encased in durable black nylon with UL 94V-0 rating. Operating from -40°C to +120°C and rated for 14A per contact, it ensures reliable, safe, and efficient power transfer in demanding industrial and electronic applications. Compliant with RoHS and halogen-free, it guarantees safety, durability, and environmental standards for your projects.
Get Molex 1722581106 today—built for reliable power delivery and durable connections in compact electronic assemblies.
