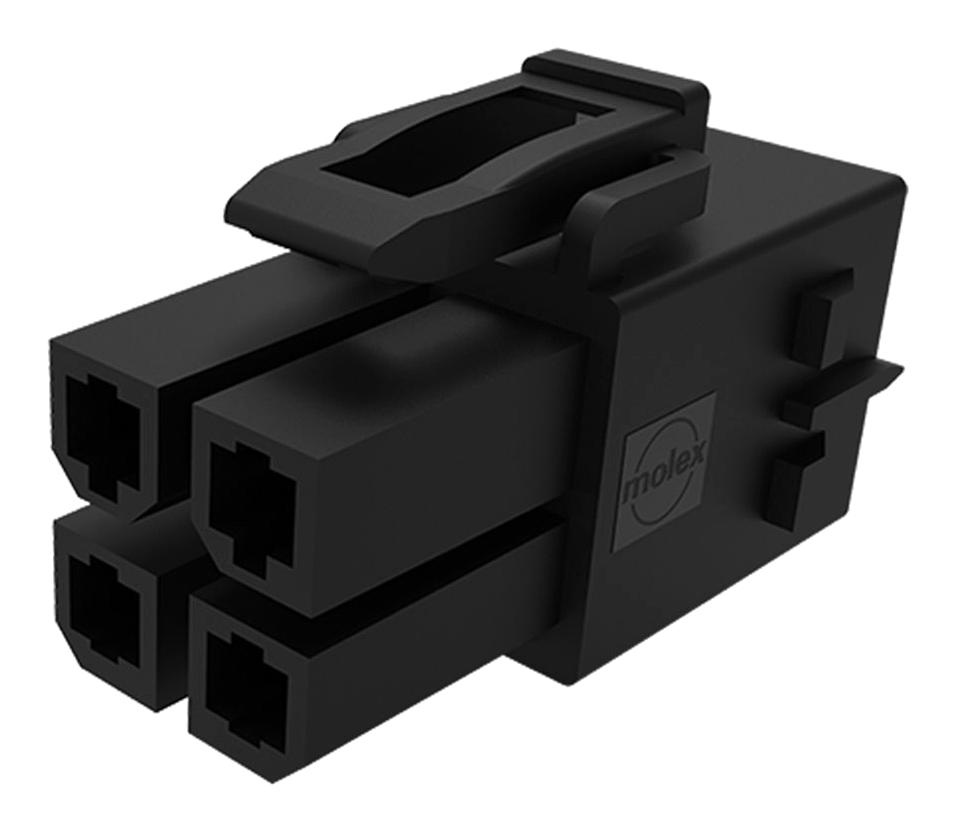

MOLEX 1716920208 Mega-Fit Receptacle Housing
The MOLEX 171692-0208 Mega-Fit Receptacle Housing is a robust connector solution for power applications, commonly used in wire-to-board and wire-to-wire connections. This housing, crafted from black nylon, accommodates 8 circuits in a dual-row arrangement. It's designed to be glow-wire capable and offers keying and locking features for secure mating. The housing is compatible with Mega-Fit headers and terminals, making it a versatile choice for various industrial and commercial applications. Its active lifecycle status ensures availability for current and future projects.
MOLEX 1716920208 Mega-Fit Receptacle Housing Specifications:
- product_family: Crimp Housings
- series: 171692
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 8
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 4.420
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.70
- pitch_termination_interface_mm: 5.70
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°C, -40° to +120°C
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free: Not Low-Halogen
- rohs_phthalates: Not Contained
- mates_with: Mega-Fit Headers 76825, 76829, 172065, 172064, Mega-Fit Plug Housing 105411
- use_with: Mega-Fit TPA 105415, Mega-Fit Crimp Terminals 76823, 172063
