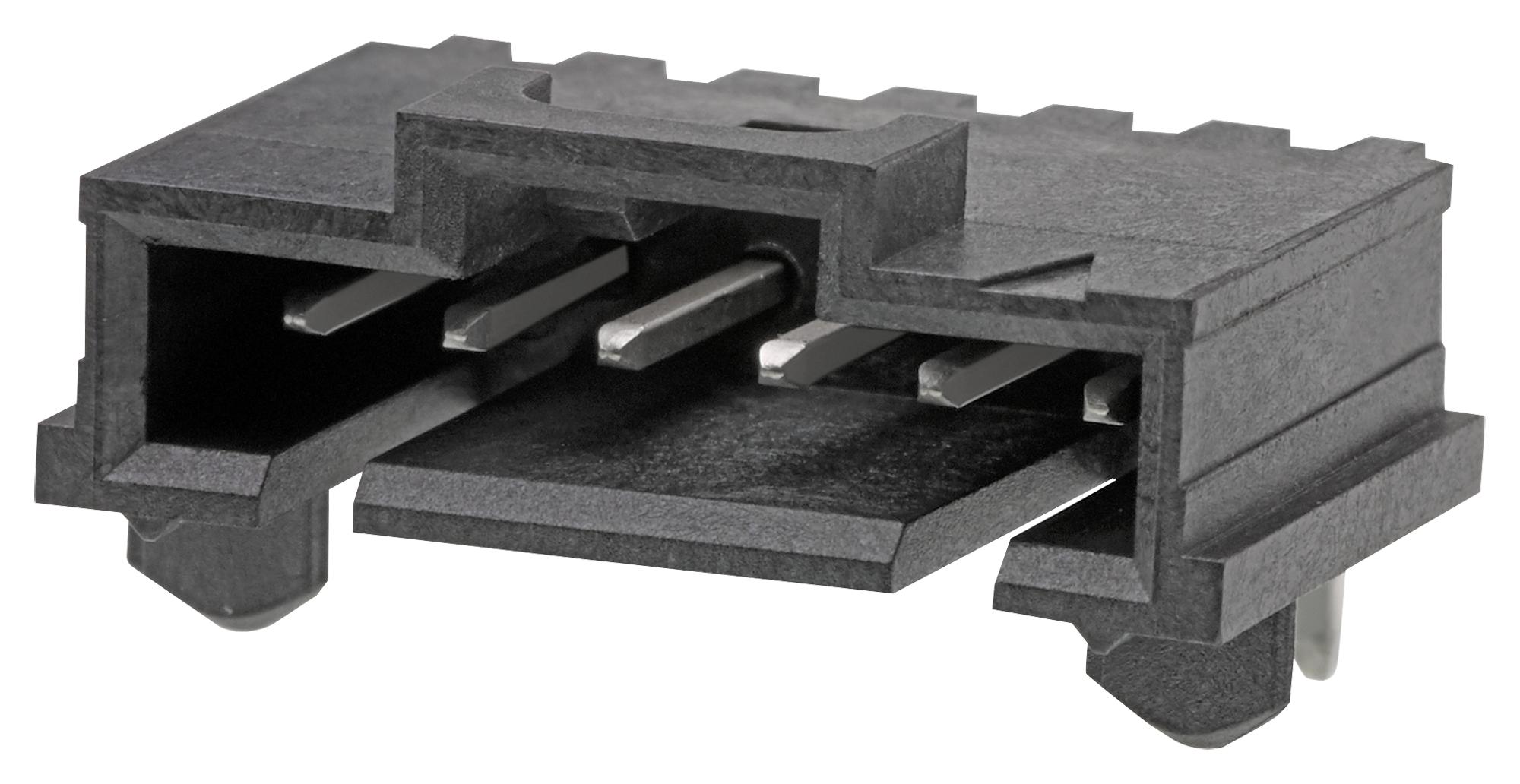

MOLEX 1719770004 SL Header, Single Row, Right-Angle
The MOLEX 171977-0004 is a robust SL modular connector designed for signal transmission in wire-to-board applications. Constructed with a liquid crystal polymer (LCP) resin and featuring a matte tin plating, this right-angle header offers excellent electrical performance and durability. Its shrouded design ensures reliable mating and prevents damage, while the surface mount capability simplifies PCB assembly. Ideal for applications requiring secure and compact connectivity.
MOLEX 1719770004 SL Header, Single Row, Right-Angle Specifications:
- product_family: PCB Headers
- series: 171977
- application: Signal, Wire-to-Board
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- first_mate_last_break: No
- glow_wire_capable: No
- guide_to_mating_part: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Matte Tin
- plating_termination: Matte Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.063
- number_of_rows: 1
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Tube
- pitch_mating_interface_mm: 2.54
- pitch_termination_interface_mm: 2.54
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- operating_temperature_range_c: -40° to +105°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 3.0
- current_maximum_per_contact_v: 250
- voltage_maximum: None
