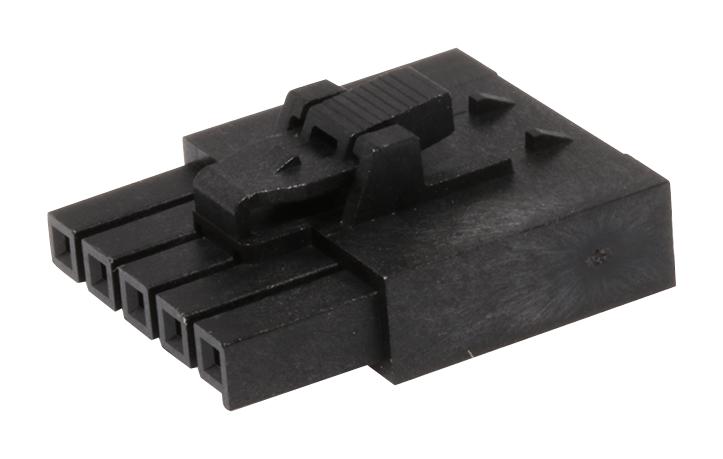

MOLEX 1722561105 Ultra-Fit Power Connector
The Ultra-Fit TPA Receptacle Housing is a compact, black power connector designed with a 3.50mm pitch, single row, and 5 circuits. It is glow-wire capable, ensuring enhanced safety and compliance, with UL and CSA certifications. Made from flame-retardant 94V-0 nylon, this receptacle provides reliable electrical connections for power, wire-to-board applications. Its robust design supports operating temperatures from -40°C to +120°C, carrying up to 14.0A per contact. This component mates seamlessly with Ultra-Fit right angle and vertical headers, making it ideal for compact electronic systems and power distributions.
MOLEX 1722561105 Ultra-Fit Power Connector Specifications:
- Pitch - Mating Interface: 3.50mm
- Circuits (maximum): 5
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Material - Resin: Nylon
- Temperature Range - Operating: -40°C to +120°C
- Current - Maximum per Contact: 14.0A
- Net Weight: 1.710 grams
- Packaging Type: Bag
- Number of Rows: 1
- Physical Dimensions: Not specified, typical for ultra-fit power connectors
- Application: Power, wire-to-board connection
- Certification: UL, CSA
- Lock to Mating Part: Yes
- Keying to Mating Part: Yes
Buy the Molex Series Ultra-Fit Power Connectors: 1722561105
Order the Molex Ultra-Fit Power Connector 1722561105 online today to ensure robust, safe, and reliable power connections for your electronic applications. Designed with a 3.50mm pitch and five circuits, this connector supports high current up to 14A per contact, ideal for power distribution in space-constrained systems. Made from flame-retardant nylon and UL/CSA certified, it can operate from -40°C to +120°C. Its glow-wire capability adds safety, and its compatibility with Ultra-Fit headers makes installation simple and secure. Perfect for modern electronic designs requiring dependable wire-to-board power solutions.
Buy Molex 1722561105 now and experience unmatched reliability and performance for power connections in compact electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 1722561105?
You can click on the BUY or RFQ button to purchase 1722561105 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1722561105?
You can download the 1722561105 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1722561105?
MOLEX
