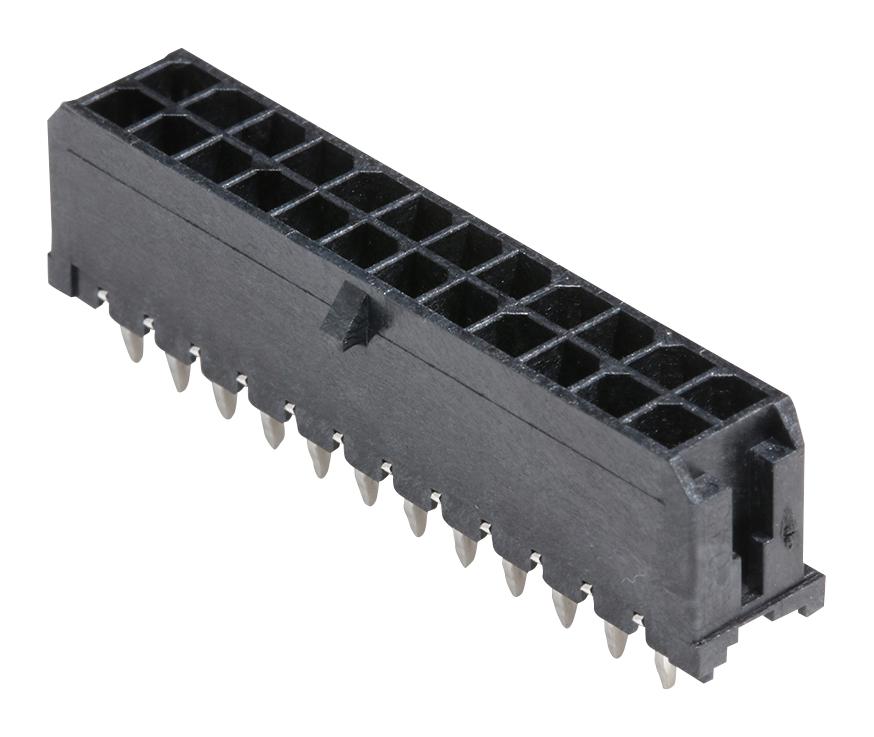

MOLEX 430452413 Power Connector
This is a high-temperature vertical connector system featuring a 3.0mm pitch, dual-row configuration with 24 circuits, suitable for power and wire-to-board applications. Constructed from halogen-free, glow-wire capable thermoplastic material, it offers resistance to heat and fire, with an ignition temperature of at least 775°C and a flammability index above 850°C. The connector supports up to 8.5A current, operates within -40°C to +105°C, and features a fully mated, shrouded design with a PCB retention system, making it ideal for demanding electrical environments.
MOLEX 430452413 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 24
- Color - Resin: Black
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Copper alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin-plated
- Durability (Mating cycles max): Fully
- Flammability: UL 94V-0, Glow-Wire Capable
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 8.5A
- Temperature Range - Operating: -40°C to +105°C
- Physical: Vertical orientation, Shrouded, Stackable
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Lead-free Process Capability: Yes
- Process Temperature Max: 260°C
- Max. Cycles at Max. Process Temperature: 2
Buy the Molex 4300452413 – Reliable Power Connector System for Industrial Applications
Discover the Molex Power Connector with a 3.0mm pitch, dual-row design, and 24 circuits, engineered from halogen-free, glow-wire capable material. This high-temperature connector ensures safe, fire-resistant operation with an ignition temperature above 775°C and UL 94V-0 flammability rating. Support maximum current of 8.5A and voltage of 600V, functioning efficiently from -40°C to +105°C. Its fully shrouded, stackable design makes it ideal for power and wire-to-board applications, ensuring long-lasting, reliable electrical connections.
Get Molex 4300452413 today—built for high-temperature durability and reliable power connections in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 430452413?
You can click on the BUY or RFQ button to purchase 430452413 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452413?
You can download the 430452413 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452413?
MOLEX
