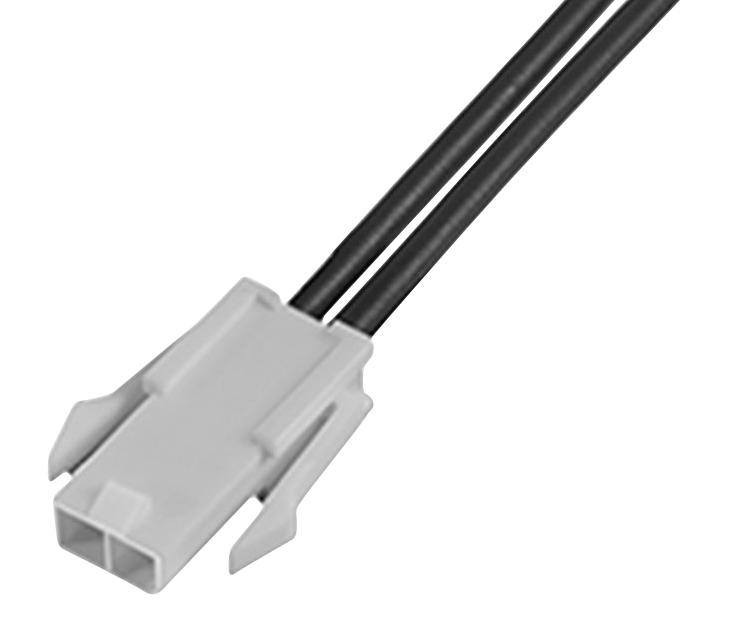

MOLEX 2153211022 Power Connector Assembly
The Mini-Fit Jr. Female-to-Pigtail Off-the-Shelf Cable Assembly is a versatile power connector designed for reliable electrical connections in various applications. This single-row assembly measures 300mm in length, features tin-plated brass contact material, and is compatible with Mini-Fit Jr. headers and plugs. The assembly is ideal for wire-to-wire and wire-to-board configurations, supporting up to 9A current and 600V voltage. Its black nylon resin body with crimp or compression termination ensures durability and ease of installation, making it suitable for power distribution and electronic systems.
MOLEX 2153211022 Power Connector Assembly Specifications:
- Cable Length: 300.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface Style: Crimp or Compression
- Connector to Connector Application
- Assembly Configuration: Single Ended
- Net Weight: 14.760 grams
- Packaging Type: Bag
Buy the Molex Series Mini-Fit Jr. Power Connectors: 2153211022
Purchase the Molex Power Connector Assembly today to ensure dependable power connections with ease. Its compact 300mm cable length, tin-plated contacts, and robust nylon body make it suitable for various electronic and electrical installations. Designed for both wire-to-wire and wire-to-board connections, this assembly supports up to 9A current and 600V voltage, providing safety and efficiency. Streamline your assembly process and enhance system reliability—order now for fast delivery and professional integration.
Buy Molex 2153211022 now and experience unmatched reliability with its durable design and optimal electrical performance in power systems.
Frequently Asked Questions
Where can I buy MOLEX 2153211022?
You can click on the BUY or RFQ button to purchase 2153211022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153211022?
You can download the 2153211022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153211022?
MOLEX
