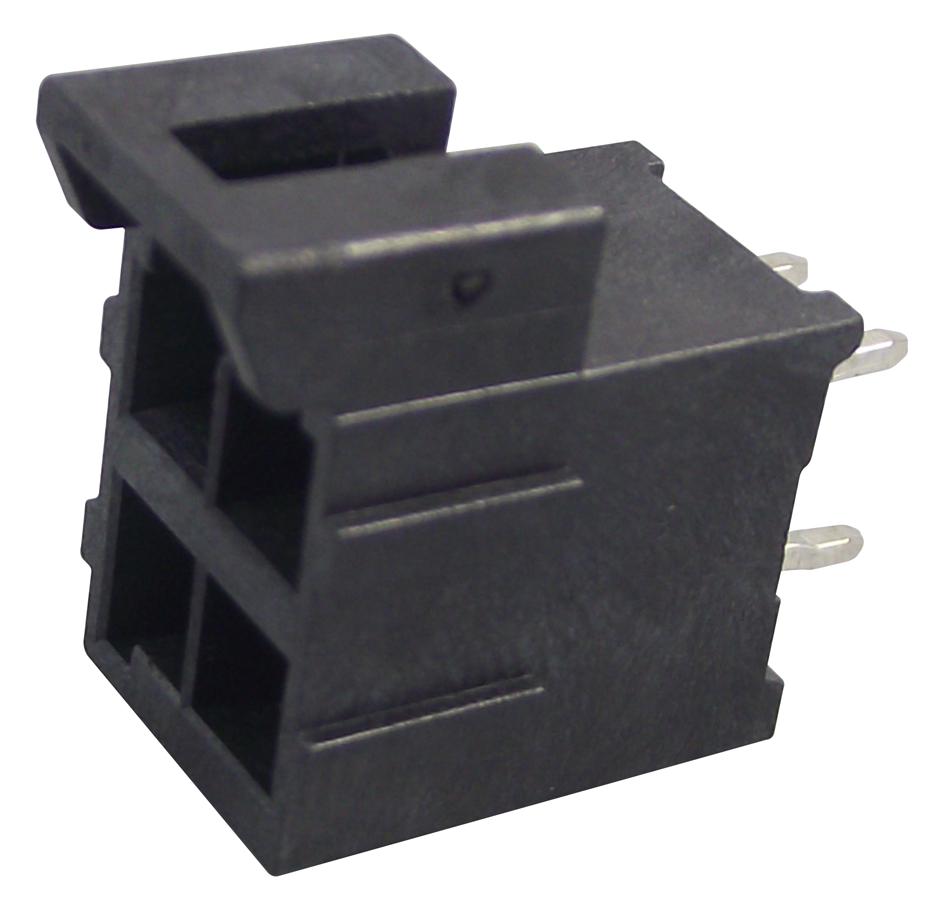

MOLEX 1722981206 Vertical Header Connector
The MOLEX 172298-1206 is an Ultra-Fit™ Vertical Header connector, ideal for wire-to-board applications requiring a robust and reliable connection. This connector boasts a 3.50mm pitch, a dual-row design with 6 circuits, and is constructed with copper alloy and liquid crystal polymer. It features gold-over-nickel plating on the mating side and tin-over-nickel plating on the termination side, ensuring excellent conductivity and corrosion resistance. The connector is designed for easy integration and offers features like polarized mating and PCB retention. It is suitable for a wide range of industrial applications where secure and efficient power transmission is critical.
MOLEX 1722981206 Vertical Header Connector Specifications:
- Pitch - Mating Interface: 3.50mm
- Circuits (Loaded): 6
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Current - Maximum per Contact: 11.0A
- Voltage - Maximum: 400V AC (RMS)/DC
- Flammability: 94V-0
- PCB Tail Length: 3.20mm
- Material - Resin: Liquid Crystal Polymer
- Mates With: Ultra-Fit™ Receptacle Housing 172258 , 172262
- Temperature Range - Operating: -40°C to +120°C
- Material - Metal: Copper Alloy
- Number of Rows: 2
- Color - Resin: Black
- Durability (mating cycles max): 200
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.524µm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- First Mate / Last Break: No
- Glow-Wire Compliant: Yes
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Net Weight: 1.554/g
- Breakaway: No
- Circuits (maximum): 6
- Keying to Mating Part: Yes
- SMC: Yes
