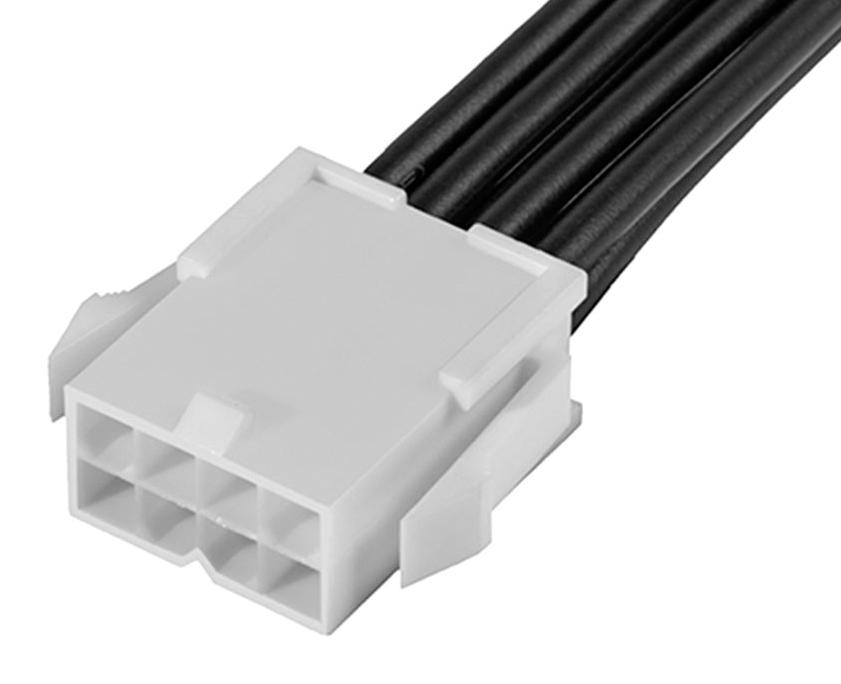

MOLEX 2153252081 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-2081 is a Mini-Fit Jr. female-to-female off-the-shelf (OTS) cable assembly designed for reliable power connections in various applications. This assembly features a dual-row configuration with 8 circuits and a 150mm length, making it suitable for connecting devices within a defined space. The gold plating on the mating interface ensures low contact resistance and excellent signal transmission, while the tin plating on the termination interface facilitates secure crimp connections. Constructed with brass and nylon materials, this cable assembly offers durability and resistance to environmental factors. It is commonly used in power, wire-to-board, and wire-to-wire applications across diverse industries.
MOLEX 2153252081 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 150.00mm
- circuits_loaded: 8
- color_resin: Black
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 34.604/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264589883
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
Buy the 215325-2081 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215325-2081 Mini-Fit Jr. Cable Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153252081?
You can click on the BUY or RFQ button to purchase 2153252081 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153252081?
You can download the 2153252081 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153252081?
MOLEX
