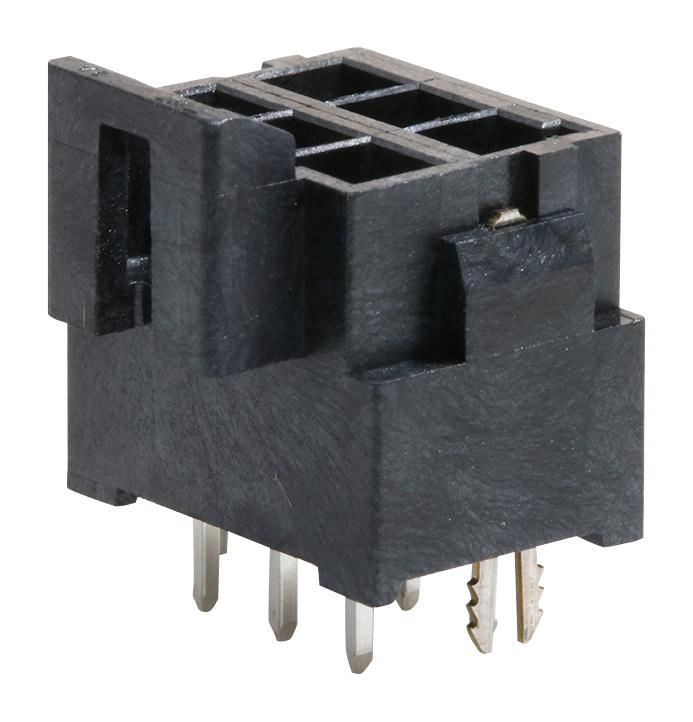

MOLEX 1722991106 Vertical Header, 6 Circuits
The MOLEX 1722991106 is a robust Ultra-Fit vertical header suitable for a variety of power applications. This header features a dual-row design with 6 circuits, offering a secure and reliable connection for wire-to-board applications. Constructed with a copper alloy and liquid crystal polymer, it provides excellent durability and heat resistance. The tin over nickel plating on both mating and termination interfaces ensures optimal conductivity and corrosion resistance. It is glow-wire capable and designed for easy integration into PCB assemblies.
MOLEX 1722991106 Vertical Header, 6 Circuits Specifications:
- overview: Ultra-Fit Vertical Header
- pitch_mating: 3.50mm
- pitch_termination: 3.50mm
- circuits_loaded: 6
- circuits_maximum: 6
- plating_mating: 1.524µm
- plating_termination: 1.524µm
- material_metal: Copper Alloy
- material_resin: Liquid Crystal Polymer
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- pcb_thickness_recommended: 1.60mm
- current_maximum_per_contact: 12.0A
- voltage_maximum: 400V AC (RMS)/DC
- temperature_range_operating: -40° to +120°C
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length: 3.20mm
- durability_mating_cycles_max: 25
- flammability: 94V-0
- glow_wire_capable: Yes
- material_info_rohs: Compliant
- halogen_free_status: Low-Halogen
- pcb_retention: Yes
- pcb_locator: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: Yes
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temp: 002
- process_temperature_max_c: 260
