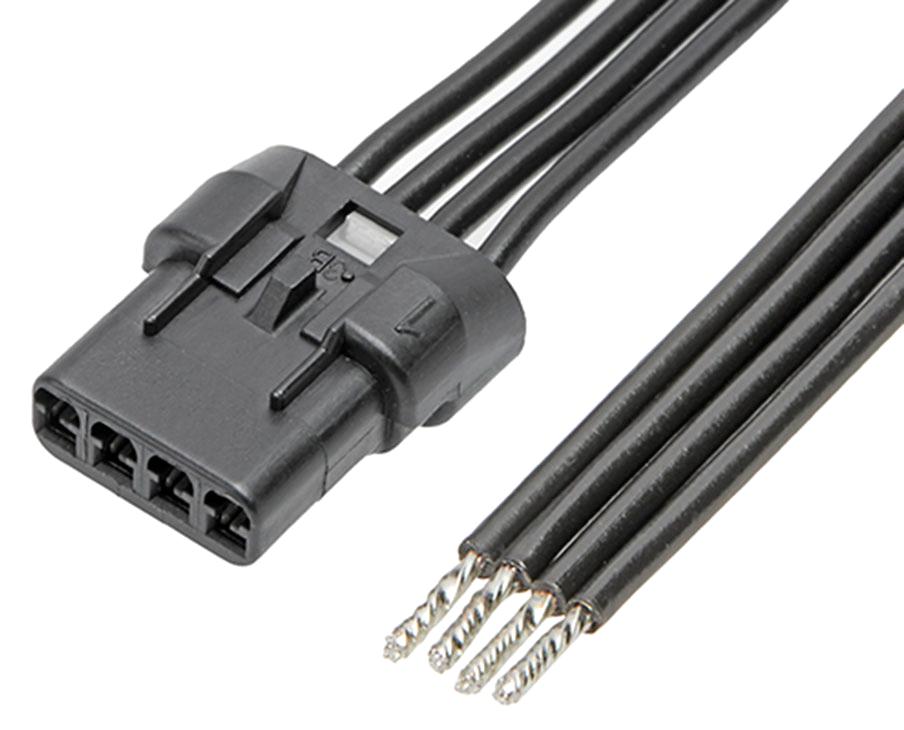

MOLEX 2153111042 Waterproof Connector Assembly
The 215311 series Mizu-P25 female-to-Pigtail cable assembly features a 2.50mm pitch, rated IP67 for water and dust resistance, supporting up to 4A current and 60V voltage. It ensures secure locking with a positive locking mechanism, and has a compact, durable design ideal for tight spaces. The polyester housing and phosphor bronze contacts with tin plating provide corrosion resistance. Suitable for automotive, industrial automation, and consumer electronics applications, it offers reliable waterproof connections with polarization for correct mating and UL certification for safety standards compliance. The assembly includes terminals from series 50147 and 50148, supporting seamless integration in demanding environments.
MOLEX 2153111042 Waterproof Connector Assembly Specifications:
- Pitch: 2.50mm
- Waterproof rating: IP67
- Current Capacity: 4A
- Voltage Rating: 60V
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Number of Circuits: 4
- Cable Length: 300.00mm
- Color: Black
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Assembly Type: Female-to-Pigtail
- Connector Gender: Female
- Locking Mechanism: Yes
- Mating Mismatch Prevention: Polarization feature
- Certification: UL (file no E29179)
Buy the Molex 215311 Series – Reliable Waterproof Connector for Industrial Applications
Experience the durability and secure locking of the Molex waterproof connector assembly. Designed for demanding industrial and automotive applications, it supports 4A current, 60V rating, and IP67 waterproof standard. Its compact size and polarization feature ensure easy installation and correct mating in tight spaces, while the polyester housing and tin-plated phosphor bronze contacts provide corrosion resistance. Certified by UL, this versatile connector is ideal for automation, consumer electronics, and outdoor electronic systems. Shop online today for reliable connections that withstand extreme conditions.
Buy Molex 215311 series waterproof connector assembly now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy MOLEX 2153111042?
You can click on the BUY or RFQ button to purchase 2153111042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153111042?
You can download the 2153111042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153111042?
MOLEX
