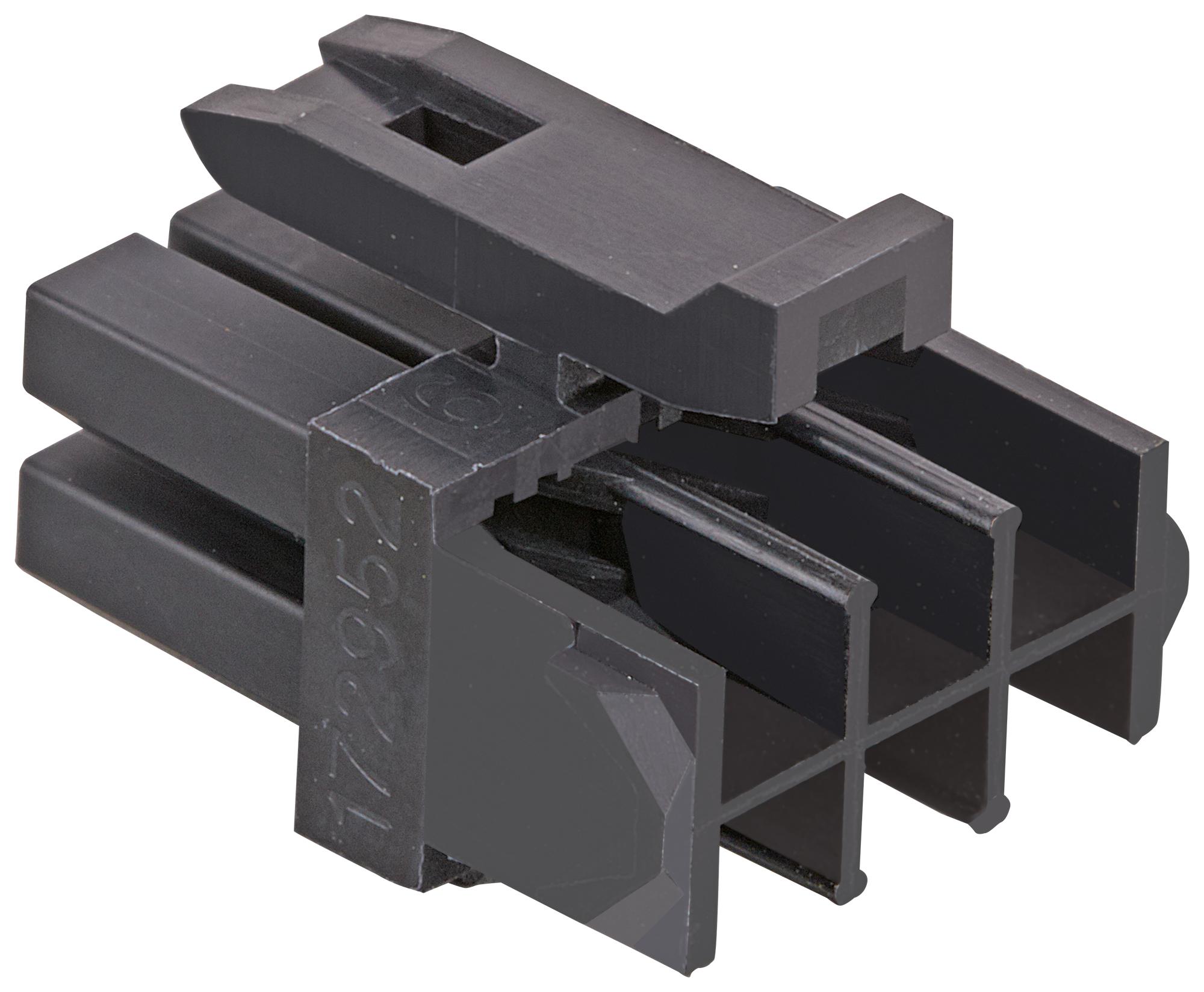

MOLEX 1729520601 Micro-Fit Connector Housing
The Micro-Fit 3.0 TPA Receptacle Housing is a dual-row, 6-circuit connector designed for power and wire-to-board applications. Made from durable nylon with UL 94V-0 flammability rating and low-halogen materials, it ensures safety and environmental compliance. The housing features a 3.00mm pitch, is polarized for easy mating, and operates within a temperature range of -40°C to +105°C. Suitable for high-current applications, it is compatible with Micro-Fit 3.0 plug housing and header, providing reliable electrical connections in industrial and electronic systems.
MOLEX 1729520601 Micro-Fit Connector Housing Specifications:
- Circuits: 6
- Color - Resin: Black
- Flammability: UL 94V-0
- Material - Resin: Nylon
- Net Weight: 0.493 grams
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 3.00mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +105°C
- Glow-Wire Compliant: Yes
- Lock to Mating Part: None
Buy the Buy Molex Micro-Fit 3.0 Part Number 1729520601 Online
Enhance your electronic assemblies with the Micro-Fit 3.0 connector housing, designed for high current power applications. Made from durable nylon with UL 94V-0 flammability rating, it provides safe, reliable, and environmentally compliant electrical connections. The dual-row, 6-circuit design features a 3.00mm pitch, polarization, and operates across a temperature range of -40°C to +105°C. Easy to install and compatible with Micro-Fit plugs and headers, it's ideal for industrial, power, and electronic device applications, ensuring secure and efficient connections.
Buy Molex 1729520601 now and experience reliable power connections and robust performance in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 1729520601?
You can click on the BUY or RFQ button to purchase 1729520601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1729520601?
You can download the 1729520601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1729520601?
MOLEX
