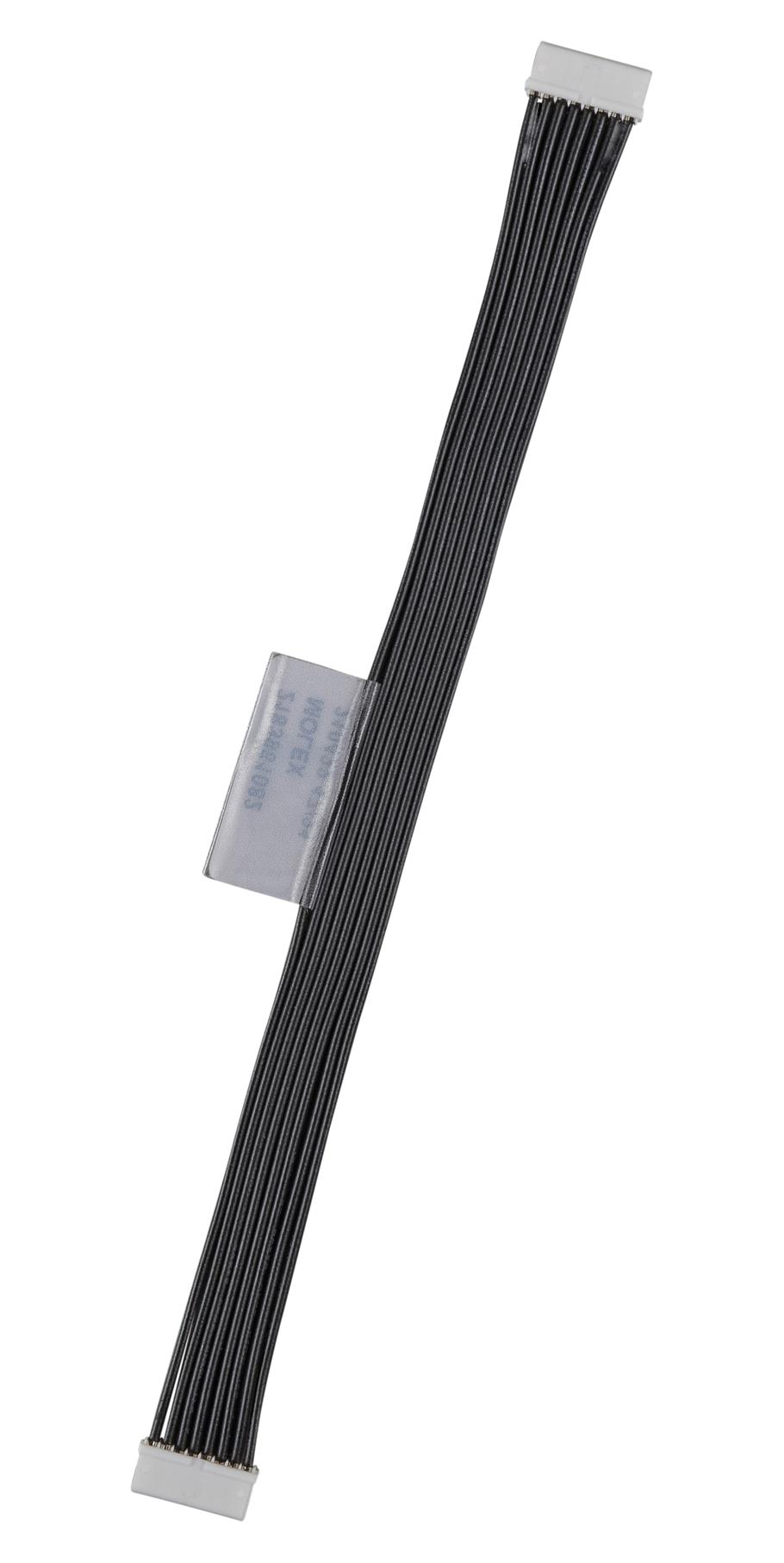

MOLEX 2183961080 Pico-SPOX Cable Assembly
The MOLEX 218396-1080 is a Pico-SPOX wire-to-board connector system designed for reliable signal transmission in various applications. This dual-ended cable assembly offers a compact 1.50mm pitch and incorporates phosphor bronze material with tin plating for enhanced conductivity and durability. It's ideal for applications requiring secure and efficient wire connections, such as in industrial equipment, consumer electronics, and automotive systems. The assembly is RoHS compliant and features a natural resin color for easy identification.
MOLEX 2183961080 Pico-SPOX Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 218396
- application: Signal, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector
- overview: Pico-SPOX Wire-to-Board Connector System
- type: Discrete Wire Assembly
- upc: 195842352209
- cable_length: 50.00mm
- circuits_loaded: 8
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 1.790
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.50mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 0.95-1.20mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_maximum_per_contact_a: 2.5
- voltage_maximum_v: 250
- elv_not_relevant: Not Relevant
- china_rohS: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2183961080-000
