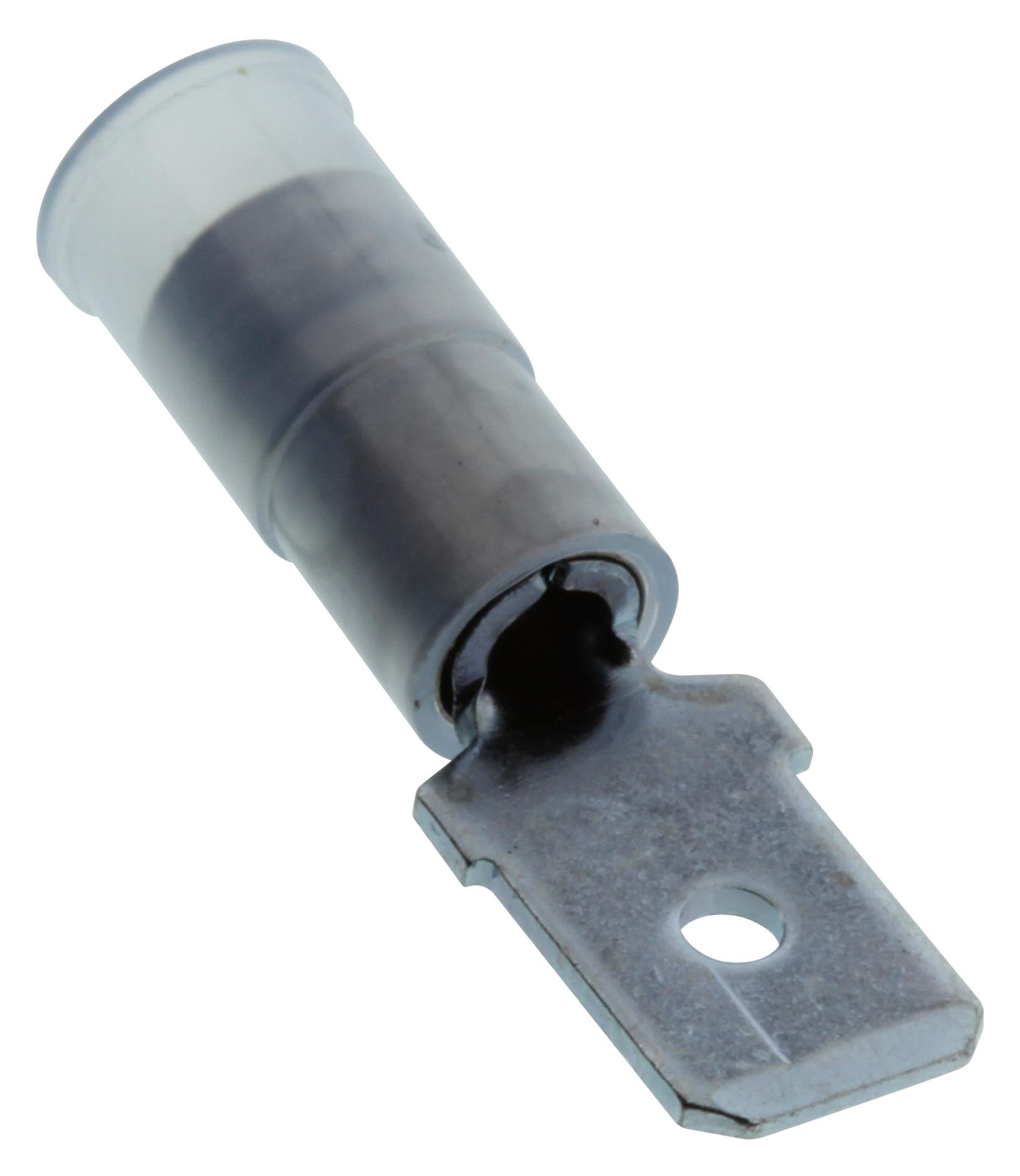

MOLEX 190250007 Quick Disconnect Terminal
The Avikrimp Quick Disconnect for 14-16 AWG wire is a male terminal designed for reliable crimp connections with 6.35 x 0.81mm tabs. Made from zinc chromate-plated brass and encased in blue nylon insulation, it features UL and CSA certifications, ensuring safety and quality. Suitable for operating temperatures from -65°C to +105°C, this terminal boasts a maximum voltage of 600V. It is designed for easy crimping with standard tools, ideal for quick and secure wire termination in various electrical applications.
MOLEX 190250007 Quick Disconnect Terminal Specifications:
- Wire Size AWG: 14, 16
- Wire Insulation Diameter: 4.30mm max.
- Tab Width: 6.35mm
- Tab Thickness: 0.81mm
- Material - Metal: Brass
- Material - Plating Mating: Zinc Chromate
- Material - Plating Termination: Zinc Chromate
- Material - Resin: Nylon (PA)
- Color - Resin: Blue
- Flammability: UL 94V-2
- Voltage - Maximum: 600V
- Temperature Range - Operating: -65°C to +105°C
- Net Weight: 1.310g
- Packaging Type: Bag
- Gender: Male
- Orientation: Straight
- Lock to Mating Part: No
Buy the Buy Molex Avikrimp Quick Disconnect Part Number 190250007 Online
Purchase the Molex quick disconnect terminal online today for dependable wiring solutions. Crafted from durable brass and coated with zinc chromate, it ensures secure connections in electrical assemblies. Suitable for 14-16 AWG wire, it features UL and CSA certifications for safety. The terminal handles temperatures from -65°C to +105°C and can withstand voltages up to 600V. Ease of crimping and reliable mating make it ideal for quick installations, project wiring, or repair tasks in industrial, automotive, and electronic applications.
Order your Molex Series19025 190250007 quick disconnect terminal today and ensure quick, reliable, and safe wire connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 190250007?
You can click on the BUY or RFQ button to purchase 190250007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190250007?
You can download the 190250007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190250007?
MOLEX
