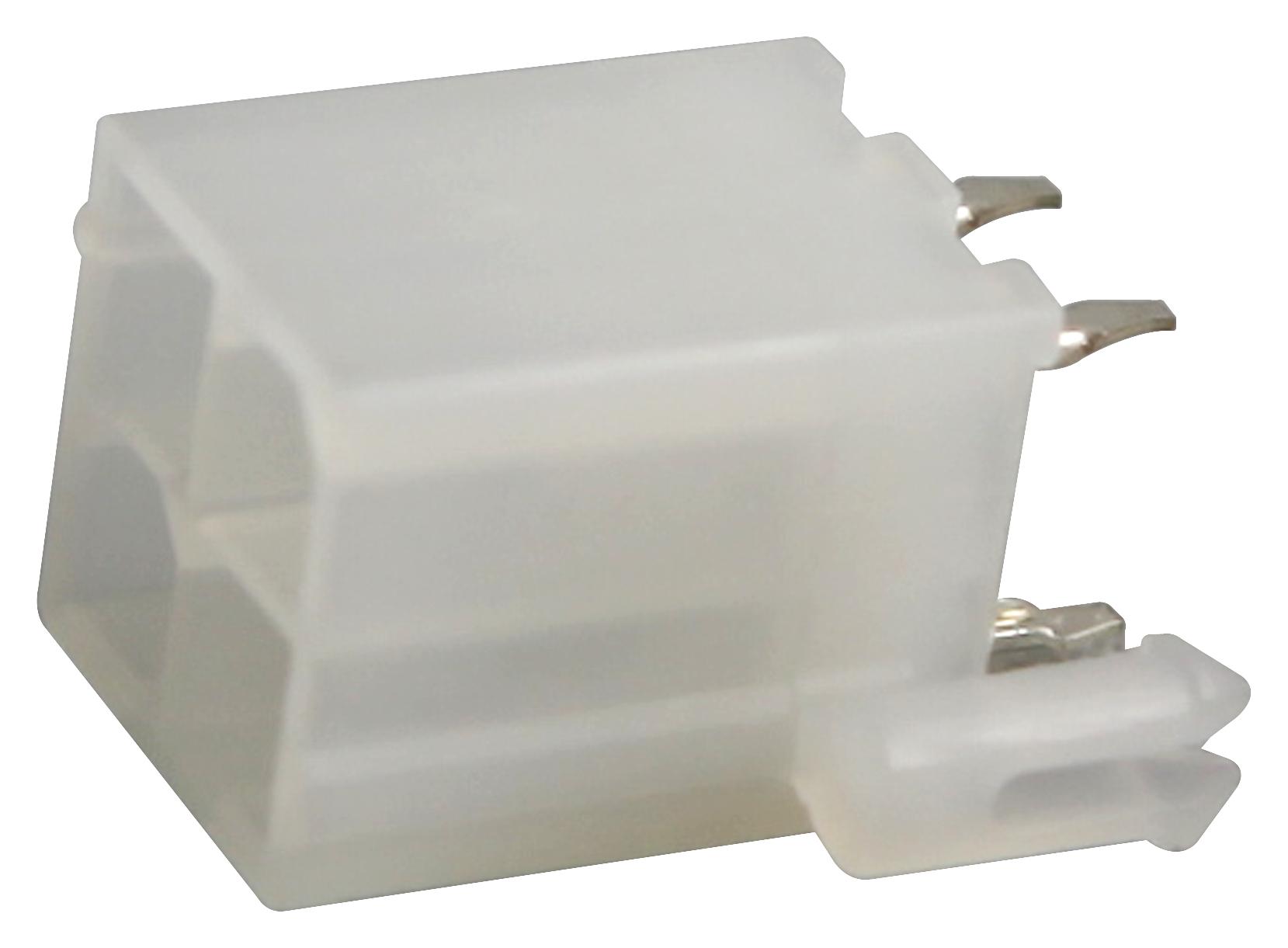

MOLEX 39306087 Power Connector
The Mini-Fit Jr. power connector offers a reliable, dual-row, 4.20mm pitch header with 8 circuits, made with durable nylon resin, tin-plated brass contacts, and shrouded, vertical orientation. Designed for wire-to-board applications, it supports up to 9A per contact and 600V, with a maximum operating temperature of 105°C. It features PCB retention, polarization, and a 30 mating cycle durability, suitable for power and industrial projects needing secure, stackable connections with a compact footprint.
MOLEX 39306087 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 8
- Row Configuration: Dual row
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Color - Resin: Natural
- Operating Temperature Range: -40° to +105°C
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Solder Process Temperature: 240°C
- Mating Cycles Max: 30
- Lock Type: Yes, Snap-in
- PCB Thickness - Recommended: 1.60mm
- Tail Length: 3.50mm
- Surface Mount Compatible: No
- Shrouded: Fully shrouded
- Stackable: No
- RoHS Compliant: Yes
- UL Certification: E29179
- UL Voltage Rating: 600V
Buy the Molex Series 5566 Power Connectors: Mini-Fit Jr. 8 Circuits 39306087
Enhance your power and PCB connections with the reliable Molex Series 5566 Mini-Fit Jr. power connector. Featuring a 4.20mm pitch, dual-row design, and tin-plated contacts, it offers up to 9A per contact and 600V capacity. Its shrouded, fully insulated design ensures safe, secure connections, perfect for industrial, power, and electronic applications. Durable and rated for 30 mating cycles, this connector guarantees longevity and performance, making it an essential component for dependable, high-quality electrical systems. Buy online now for fast delivery and trusted quality.
Order your Molex Series 5566 Mini-Fit Jr. 8 Circuits power connector today and ensure reliable, secure wiring connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 39306087?
You can click on the BUY or RFQ button to purchase 39306087 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39306087?
You can download the 39306087 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39306087?
MOLEX
