MOLEX 2147612115 Micro-Fit 3.0 Female-to-Pigtail

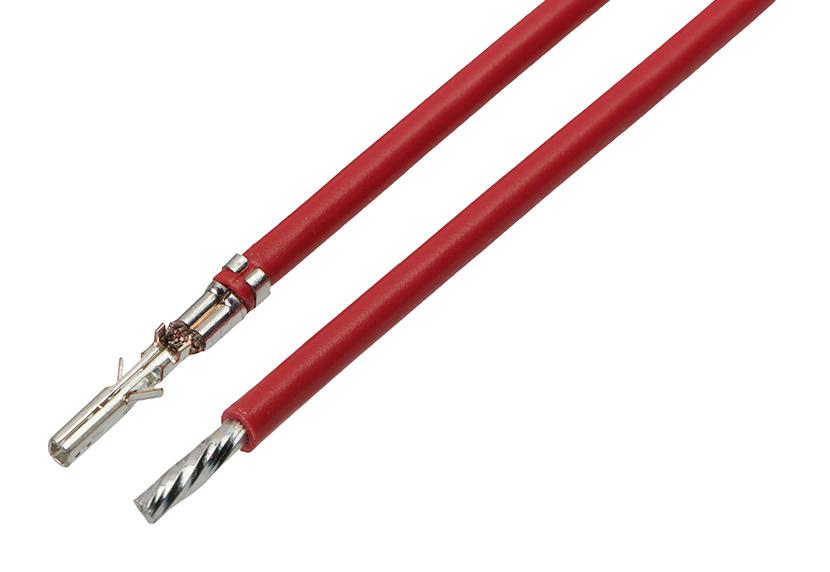

The MOLEX 214761-2115 is a pre-crimped lead assembly designed for reliable power and wire-to-board or wire-to-wire connections. This assembly features a Micro-Fit 3.0 female connector on one end and a pigtail configuration on the other, offering flexibility in application. The tin plating ensures excellent conductivity and corrosion resistance, while the 450mm length provides ample reach. Constructed with 20 AWG wire and a red insulation color, this connector is suitable for various industrial and commercial applications where a pre-terminated solution is desired.
MOLEX 2147612115 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Tin (Sn) Plated, 450.00mm Length, 20 AWG, Red
- product_family: Cable Assemblies
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- crimp_terminals: Micro-Fit 3.0 Crimp Terminals
- cable_length: 450.00mm
- wire_size_awg: 20
- wire_insulation_diameter_max: 1.85mm
- circuits_loaded: 1
- color: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- current_max_per_contact: 8.5A
- upc: 193264574513
- net_weight: 3.157/g
- rohs_certificate: Available
- reach_svhc: Not Contained
- halogen_free: Yes
- elv: Not Relevant
- phthalates: Not Contained
