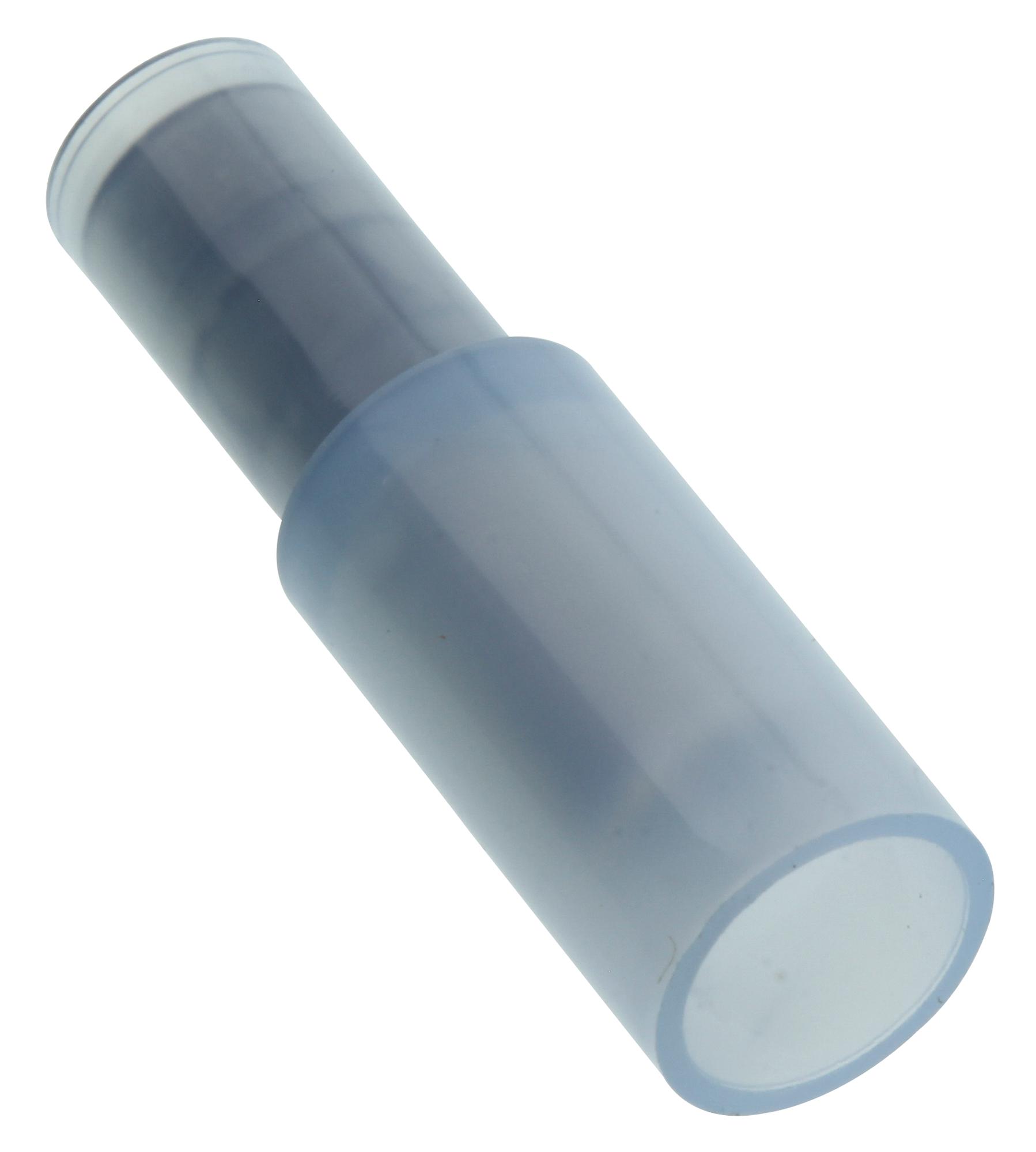

MOLEX 190390007 Avikrimp Snap Receptacle
The MOLEX 19039-0007 Avikrimp Snap Receptacle is a robust connector designed for quick and reliable terminations on 14-16 AWG wire. Constructed with a durable nylon body and featuring a brass core with tin plating, this receptacle ensures excellent conductivity and corrosion resistance. It's specifically designed to fit male plug diameters of 3.96mm, making it suitable for a wide range of applications in automotive, industrial, and consumer electronics. The connector's snap-on design simplifies installation and provides a secure connection, while its halogen-free and RoHS compliant status aligns with environmental regulations. It is compatible with hand and pneumatic crimping tools for efficient assembly.
MOLEX 190390007 Avikrimp Snap Receptacle Specifications:
- Overview: Snap Plugs and Receptacles
- Description: Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm
- Status: Active
- Product Family: Quick Disconnects
- Compliant: Yes
- Fits Male Plug Dia: 3.96mm
- Crimp Quality Equipment: Yes
- Halogen-Free: Product Name Avikrimp
- UPC: 800753049390
- Color: Blue
- Flammability: 94V-2
- Gender: Female
- Glow-Wire Capable: No
- Insulation: Nylon (PA)
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 1.225/g
- Orientation: Straight
- Packaging Type: Bag
- Plating min - Mating: 4.064µm
- Plating min - Termination: 4.064µm
- Tab Thickness: N/A
- Tab Width: N/A
- Temperature Range - Operating: -40° to +105°C
- Wire Insulation Diameter: 3.81mm max.
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.00-2.50
- Voltage - Maximum Per Wire Specification: N/A
- Lead-freeProcess Capability: N/A
- Engineering Number: BRB-8156N
- Product Specification: PS-19902-011-001, PS-19902-013-001
- Sales Drawing: SD-19039-001
