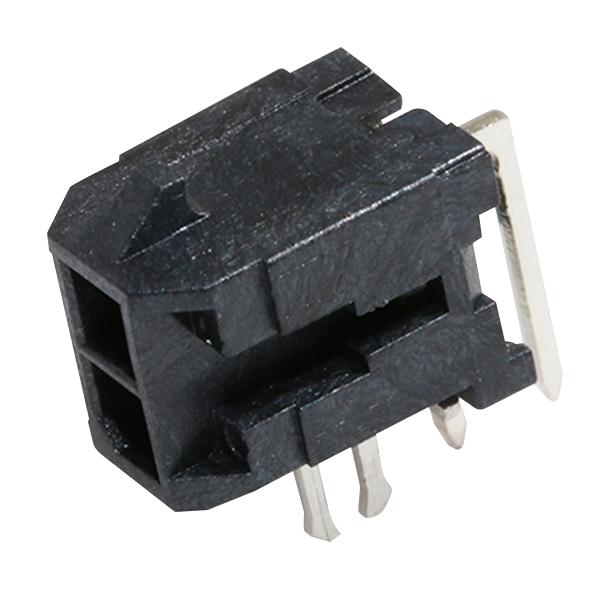

MOLEX 430450222 Micro-Fit 3.0 Connector
The Micro-Fit 3.0 right-angle header offers a compact 3.00mm pitch with dual rows and 2 circuits, featuring PCB press-fit metal retention clips, gold plating for enhanced conductivity, and a high-temperature thermoplastic housing capable of withstand operating temperatures from -40°C to +105°C. Designed for power and wire-to-board applications, it complies with IEC standards for heat and fire resistance, and features a versatile 8.5A current rating at 600V, with a mating height of 10.06mm and a physical size suitable for high-density circuit assemblies in industrial, electronic, and automation equipment.
MOLEX 430450222 Micro-Fit 3.0 Connector Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits (loaded): 2
- Maximum Circuits: 2
- Color - Resin: Black
- Mated Height: 10.06mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Termination Interface: Through Hole
- Packaging Type: Tray
- PCB Thickness - Recommended: 1.60mm
Buy the Molex Series Micro-Fit 3.0 Power Connector: 430450222
Purchase the Molex Micro-Fit 3.0 right-angle header online now to benefit from high durability, reliable power delivery, and an easy press-fit installation. With a 3.00mm pitch and dual-row design, this connector supports up to 8.5A at 600V, suitable for power applications requiring high-temperature operation. Its gold plating ensures excellent conductivity and corrosion resistance, while the thermoplastic housing guarantees safety and stability in demanding environments. Whether for industrial automation, power supplies, or control systems, buy now for quality and dependable performance.
Order your Molex Series Micro-Fit 3.0 power connector today and ensure robust, high-performance connections in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 430450222?
You can click on the BUY or RFQ button to purchase 430450222 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450222?
You can download the 430450222 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450222?
MOLEX
