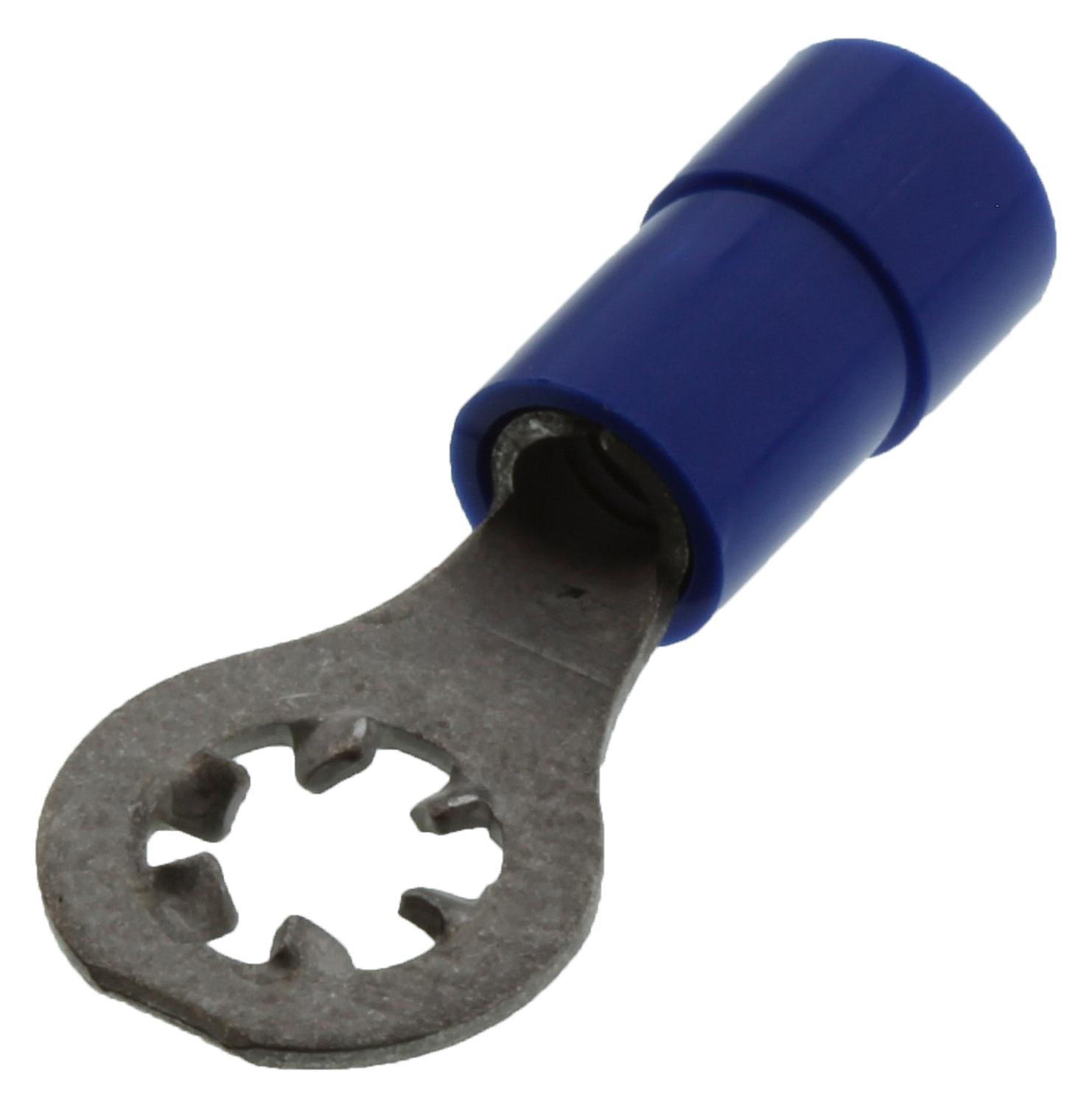

MOLEX 190750013 InsulKrimp Ring Tongue Terminal
The MOLEX 19075-0013 InsulKrimp star ring tongue terminal provides a reliable and solderless connection for various industrial applications. Designed for 14-16 AWG wire and a 6 (M3.5) stud size, this terminal ensures a secure and consistent crimp. Its halogen-free composition and RoHS compliance make it suitable for environmentally sensitive projects. This terminal is part of the 19075 series and is commonly used in automotive, appliance, and industrial wiring harnesses where a robust and efficient connection is required.
MOLEX 190750013 InsulKrimp Ring Tongue Terminal Specifications:
- overview: Solderless Terminals
- description: InsulKrimp Star Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 6 (M3.5)
- agency_certification: CSA LR18689, UL E32244
- eu_elv: Not Relevant
- product_family: Ring and Spade Terminals
- series: 19075
- crimp_quality_equipment: Yes
- reach_svhc: Not Contained Per ED/88/2018 (15 January 2019)
- halogen_free: Yes
- upc: 800753079618
- color: Resin Natural
- flammability: 94V-0
- insulation: PVC
- rohs_phthalates: Not Contained
- material_plating: Tin
- net_weight: 0.744/g
- packaging_type: Bag
- stud_size: 6 (M3.5)
- termination_interface: Crimp or Compression
- wire_insulation_diameter: 4.45mm
- wire_size: 14, 16 AWG
- engineering_number: SRB-229-06X
- sales_drawing: CD2115
- hand_crimp_tool: 640011900
- crimp_head: for the 640051900 AT-200 Pneumatic Hand Tool
