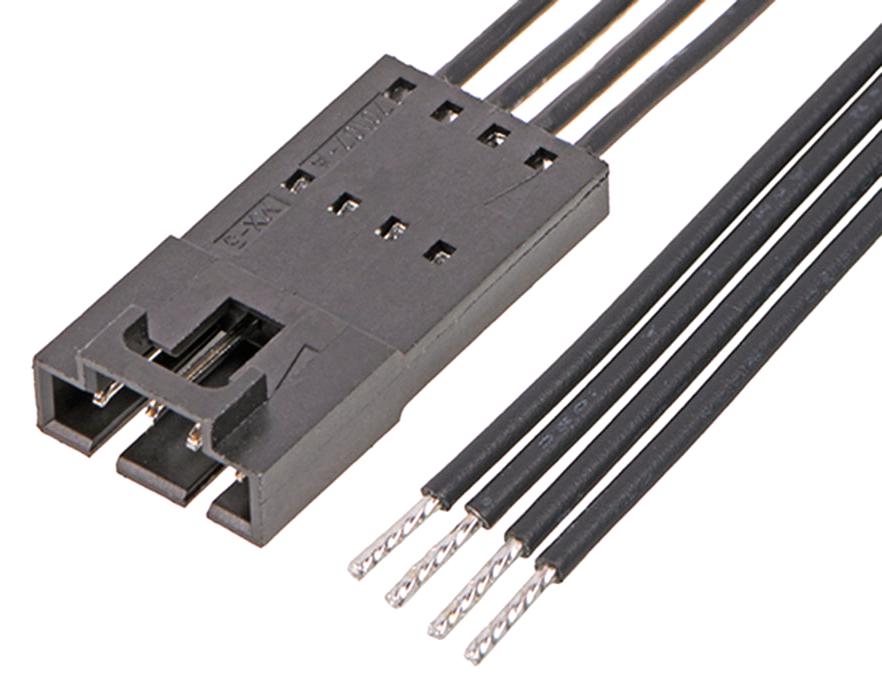

MOLEX 2162731040 Stackable Cable Assembly
The Molex SL Male-to-Pigtail Off-the-Shelf Cable Assembly offers a reliable, secure connection suitable for prototyping and mass production across multiple sectors. Featuring positive lock, stackable design, and multiple termination options, it ensures durability and high performance in high-vibration environments. With a 50mm length, 4 circuits, and tin-plated contacts, it supports applications in consumer electronics, industrial automation, automotive, medical, and telecommunications. Constructed with a polyester alloy housing and phosphor bronze contacts, operating from -40°C to +105°C, rated at 600V and 3A for dependable service over countless cycles.
MOLEX 2162731040 Stackable Cable Assembly Specifications:
- Connector type: SL Male-to-Pigtail
- Cable length: 50.00mm
- Number of circuits: 4
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Voltage Rating: 600V AC/DC
- Current Rating: 3.0A
- Temperature Range: -40°C to +105°C
- Physical features: Positive lock, stackable housing, split-peg PCB headers
- Durability: Up to 25 mating cycles
- Application sectors: consumer, industrial, automotive, medical, telecommunications
- Lock to Mating Part: Yes
- Wire Insulation Diameter: 1.63mm
- Wire Size AWG: 22
- Termination Style: Crimp or Compression
Buy the Molex Series SL Cable Assembly: 2162731040
Order the Molex Stackable Cable Assembly 2162731040 online today for robust and secure connections tailored for industrial, automotive, and consumer electronics. Designed with positive lock features, high-vibration resilience, and versatile termination options, this assembly ensures reliable performance across demanding applications. With a 50mm length, 4 circuits, tin-plated contacts, operating from -40°C to +105°C, rated at 600V and 3A, it is ideal for use in medical, telecommunications, and automation systems. Enhance your projects with this durable, high-quality cable assembly available for quick online purchase.
Get Molex 2162731040 today—built for precision and long-lasting durability with secure stacking and reliable electrical performance.
Frequently Asked Questions
Where can I buy MOLEX 2162731040?
You can click on the BUY or RFQ button to purchase 2162731040 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731040?
You can download the 2162731040 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731040?
MOLEX
