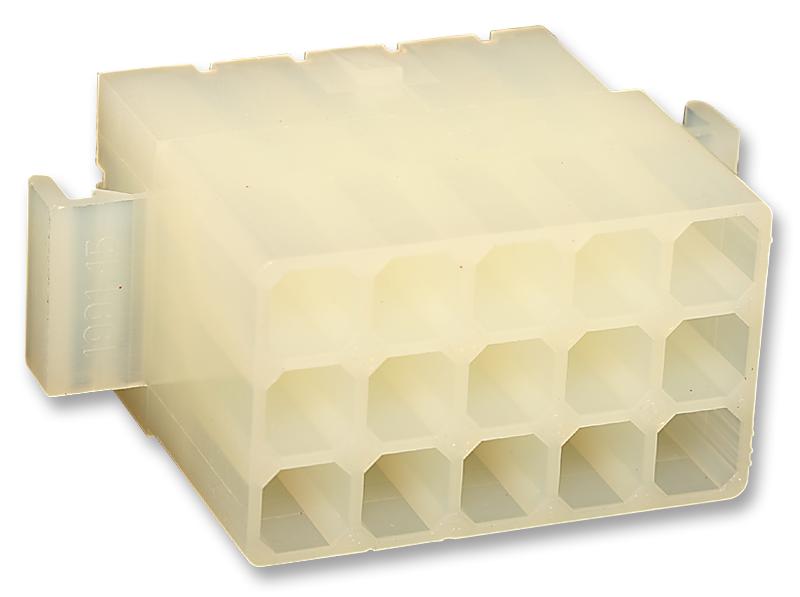

MOLEX 19091151 Standard .093 Pin and Socket Connector
The MOLEX 19-09-1151 is a robust and reliable connector designed for wire-to-wire applications. This .093" pin and socket receptacle housing features a positive latch mechanism for secure mating and includes standard mounting ears for easy integration into various systems. With 15 circuits arranged in 3 rows, it's suitable for applications requiring moderate signal transmission. The connector is polarized to ensure correct alignment and is capable of withstanding glow wire testing, demonstrating its thermal stability. It's commonly used in automotive, industrial, and consumer electronics applications where a secure and dependable connection is essential.
MOLEX 19091151 Standard .093 Pin and Socket Connector Specifications:
- diameter: 2.36mm
- pin_size: .093"
- circuits_max: 15
- rows: 3
- mounting_ears: Standard
- latch: Positive
- material: Nylon
- flammability: 94V-2
- gender: Receptacle
- glow_wire_capable: No
- keying: None
- lock: Yes
- weight: 9.352/g
- panel_mount: Yes
- pitch_mating_interface: 6.30mm
- stackable: No
- operating_temperature_range: -40° to +105°C
- current_max_per_contact: 7.5A
- upc: 800753624849
- series: 1991
- mates_with: ['19-09-2151', '19-09-2153']
- use_with: ['1189 Crimp Terminals', '1190 Crimp Terminals', '1380 Male Crimp Terminals', '1381 Female Crimp Terminals', '1433 Crimp Terminals', '1434 Male Crimp Terminals', '1973', '2151', '2273', '2870', '2871', '4272', 'Link:4550', '6271']
- lead_free_process_capability: N/A
- engineering_number: 1991-15R2
- drawing_numbers: ['PK-1991-002-001', 'PS-02-09']
