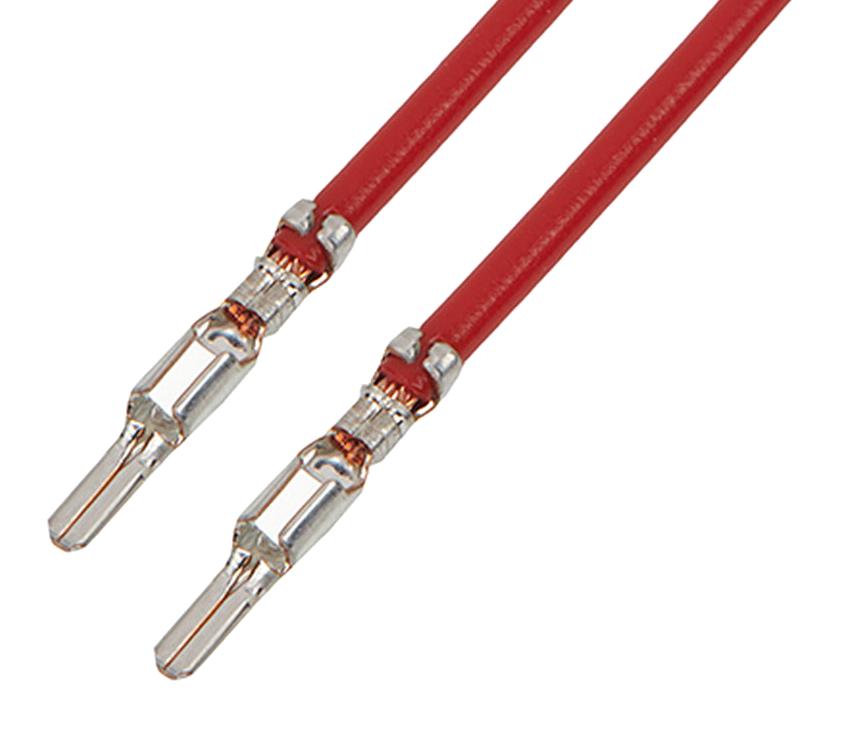

MOLEX 2178422125 Mizu-P25 Pre-Crimped Lead
The MOLEX 217842-2125 is a pre-crimped lead assembly specifically engineered for use with Mizu-P25 connectors. This assembly provides a ready-to-use solution for wire-to-wire signal transmission, eliminating the need for on-site crimping. The lead is terminated with tin plating for reliable electrical contact and features a red resin color for easy identification. Constructed with phosphor bronze and tin-plated terminations, this assembly is ideal for various industrial and commercial applications requiring a robust and pre-fabricated connection.
MOLEX 2178422125 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- cable_length: 450.00mm
- wire_size: 20 AWG
- color: Red
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.104/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- voltage_maximum: 125V
- upc: 195842150058
- series: 217842
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
