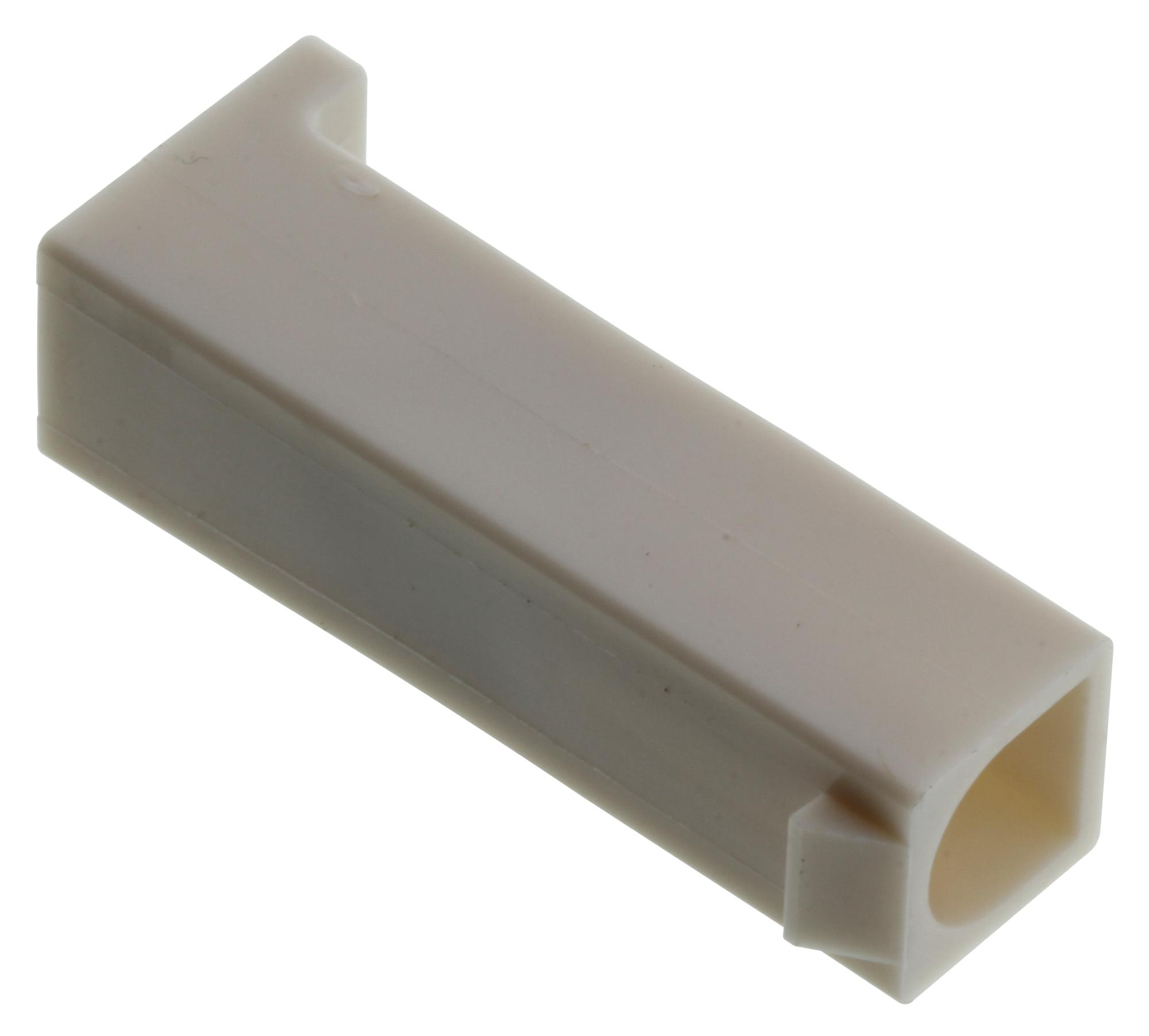

MOLEX 19092016 Standard .093 Pin Socket Plug Housing
The MOLEX 19-09-2016 is a robust plug housing within the 3191 series, designed for reliable wire-to-wire connections. Featuring a 2.36mm diameter and a positive latch mechanism, this housing ensures secure mating. Constructed from Nylon resin, it is UL 94V-0 flammability rated and polarized to the mating part, enhancing connection integrity. Suitable for power applications, this connector offers a maximum current rating of 12.0A and operates within a temperature range of -40°C to +105°C. It is RoHS compliant and contains no phthalates, making it a suitable choice for environmentally conscious designs.
MOLEX 19092016 Standard .093 Pin Socket Plug Housing Specifications:
- Product Family: Crimp Housings
- Series: 3191
- Application: Power, Wire-to-Wire
- Comments: Polarized to Mating Part, without Mounting Ears
- Circuits (maximum): 1
- Color - Resin: Natural
- Flammability: 94V-0
- Gender: Plug
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: N/A
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 12.0A
- Engineering Number: 3191-1P1-201
- Mates With: 19-09-1016, 19-09-1019
- Use With: 1189, 1190, 1380, 1381, 1433, 1434, 2605, 2606, 1973, 2151, 2273, 2870, 2871, 4272
