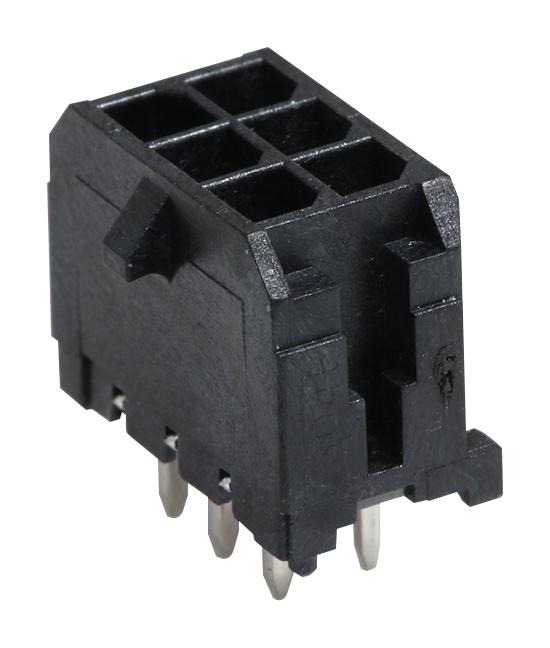

MOLEX 430450629 Power Connector
This Micro-Fit 3.0 vertical header offers a 3.00mm pitch with dual row, 6 circuits, and PCB polarization for reliable power and wire-to-board applications. Made from high-temperature thermoplastic, it features gold-plated brass contacts, shrouded design, and supports up to 8.5A current and 600V voltage. Suitable for various industrial environments, its durable construction ensures up to 30 mating cycles, with UL and CSA certification, glow-wire capability for fire safety, and a compact footprint for efficient PCB integration.
MOLEX 430450629 Power Connector Specifications:
- Pitch: 3.00mm
- Circuits: 6
- Maximum Circuits: 6
- Color - Resin: Black
- Durability: 30 mating cycles
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Mated Height: 17.64mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.974g
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.18mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Mating Interface Pitch: 3.00mm
- Plating Min - Mating: 0.762um
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Solder Process Data: 260°C, 8.5s at Max. Temp, Lead-free Process Capability
- Max. Cycles at Max. Process Temperature: 30
- Process Temperature Max.: 260°C
- Reference - Drawing Numbers: PS-43045, PS-43045-001, TS-43045-001-001, TS-43045-002-001, TS-46235-001-001
- Packaging Specification: PK-70873-0314-001
Buy the Molex 0430450629 – Reliable Power Connector for Industrial Applications
Experience reliable power connections with the Molex power connector designed for industrial applications. Featuring a 3.00mm pitch, 6 circuits, and gold-plated contacts, it ensures excellent electrical performance. The shrouded, vertical design supports up to 8.5A current and 600V voltage, and is certified for UL and CSA standards. Its durable thermoplastic body withstands high temperatures (-40°C to +105°C) and up to 30 mating cycles. Ideal for power supply and wiring projects requiring safety, reliability, and easy PCB integration. Buy online now for quality and dependability.
Get Molex 0430450629 today—built for precision and long-lasting durability in power and PCB installations.
Frequently Asked Questions
Where can I buy MOLEX 430450629?
You can click on the BUY or RFQ button to purchase 430450629 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450629?
You can download the 430450629 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450629?
MOLEX
