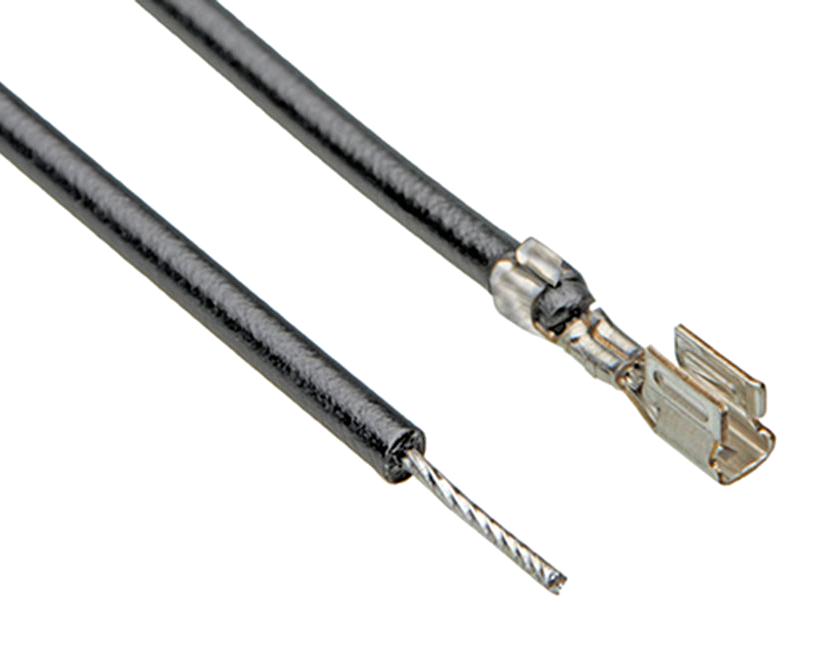

MOLEX 2175111122 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-1122 is a pre-crimped lead assembly within the L1NK 250 series, designed to simplify connections and reduce assembly time. This lead provides a pre-terminated connection between a L1NK 250 female connector and a pigtail, eliminating the need for on-site crimping. The tin plating ensures excellent conductivity and corrosion resistance, while the 22 AWG wire gauge supports a maximum current of 6.5A and a voltage of 250V AC (RMS)/DC. This component is ideal for applications requiring a secure and reliable connection in various industrial and consumer electronics.
MOLEX 2175111122 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 0.933/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119611
- sales_drawing: 2175112121-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
