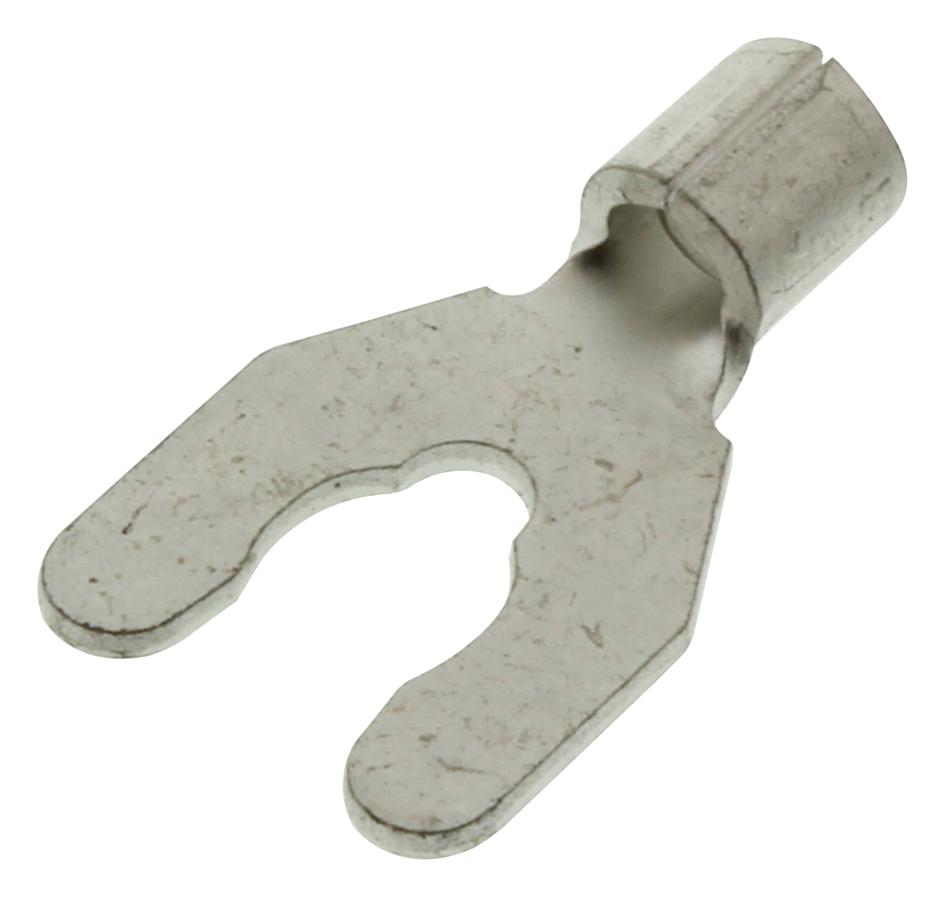

MOLEX 190980018 Krimptite Snap Spade Terminal
The MOLEX 19098-0018 Krimptite Snap Spade Terminal is a solderless termination solution designed for secure and efficient wire connections. This terminal is ideal for applications requiring a robust and reliable connection without the need for soldering, making it suitable for automotive, industrial, and consumer electronics applications. It accommodates wire sizes ranging from 18 to 22 AWG and features a stud size of 5-6 (M3-3.5), ensuring compatibility with a wide range of connectors and equipment. The terminal's closed barrel design and tin plating provide excellent corrosion resistance and electrical conductivity.
MOLEX 190980018 Krimptite Snap Spade Terminal Specifications:
- Overview: Solderless Terminals
- Description: Krimptite Snap Spade Terminal, for 18-22 AWG Wire, Stud Size 5-6 (M3-3.5), 14.86mm Length
- Product Family: Ring and Spade Terminals
- Series: 19098
- Type: Spade Snap
- Wire Size AWG: 18, 20, 22
- Wire Size mm²: 0.35-0.80
- Material - Plating Mating: Tin
- Net Weight: 0.417/g
- Barrel Type: Closed
- Insulation: None
- Stud Size: 5-6 (M3-3.5)
- UPC: 800755081374
- Engineering Number: AA-1704-06
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Lead-freeProcess Capability: N/A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
