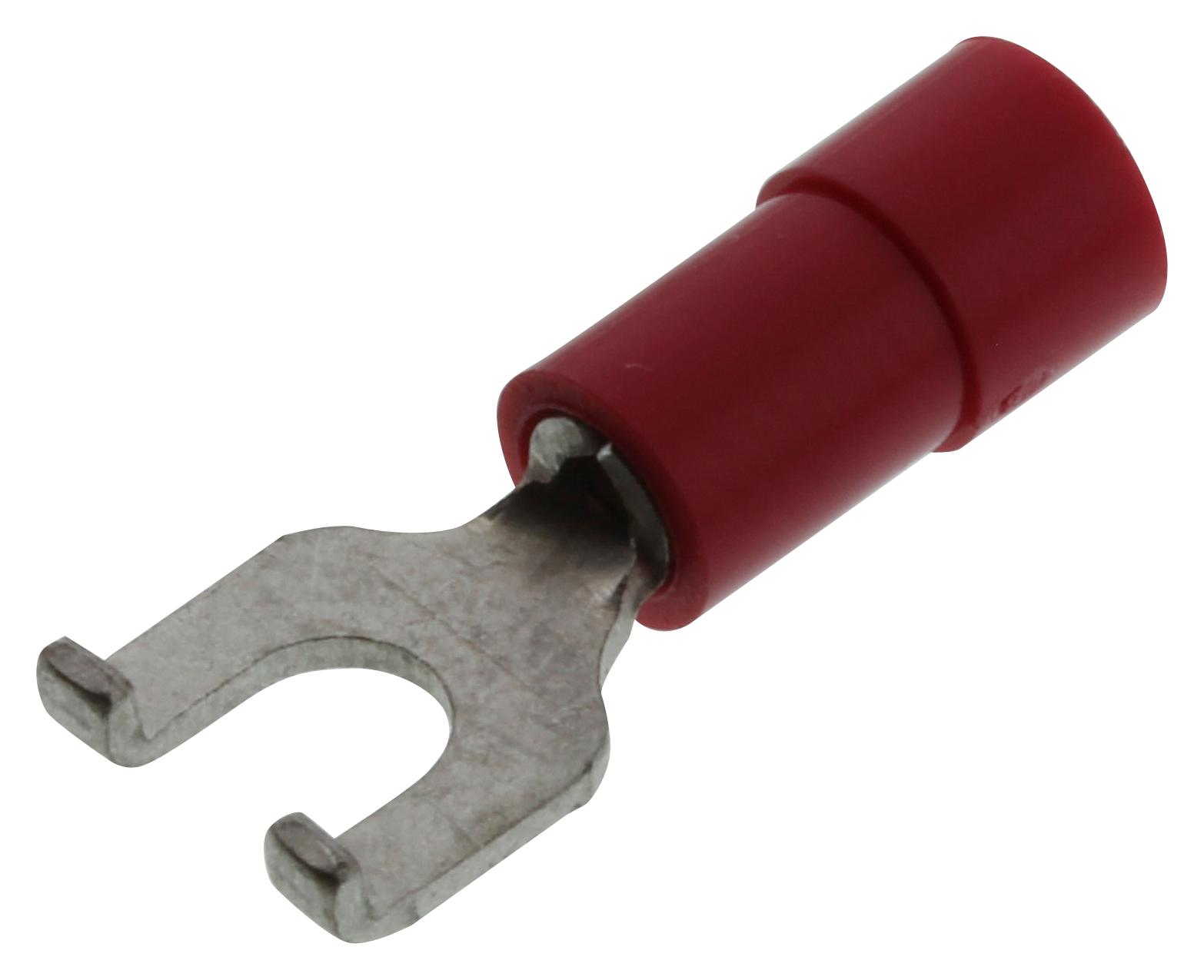

MOLEX 191210005 InsulKrimp Spade Terminal
The MOLEX 19121-0005 InsulKrimp Flanged Spade Tongue Terminal is a solderless termination solution for 18-22 AWG wire. This terminal is designed with a flanged spade tongue, providing a secure and reliable connection for various applications. It is suitable for use in automotive, industrial, and consumer electronics applications where a robust and insulated connection is required. The terminal's construction ensures excellent crimp quality and long-term performance.
MOLEX 191210005 InsulKrimp Spade Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Flanged Spade Tongue Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Length 19.84mm
- series: 19121
- wire_size_awg: 18, 20, 22
- wire_size_mm2: 0.25-1.50
- stud_size: 6 (M3.5)
- wire_insulation_diameter: 3.68mm
- material_plating_mating: Tin
- net_weight: 0.649 g
- packaging_type: Bag
- barrel_type: Closed
- flammability: 94V-0
- insulation: PVC
- crimp_quality_equipment: Yes
- mil_spec: N/A
- product_name: InsulKrimp
- type: Spade
- upc: 800753095229
- engineering_number: AA-215-06X
- lead_free_process_capability: N/A
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- agency_certification_ul: E32244
- agency_certification_csa: LR18689
Buy the 19121-0005 MOLEX InsulKrimp Spade Terminal | myMectronic
Purchase the MOLEX 19121-0005 InsulKrimp Spade Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 191210005?
You can click on the BUY or RFQ button to purchase 191210005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191210005?
You can download the 191210005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191210005?
MOLEX
