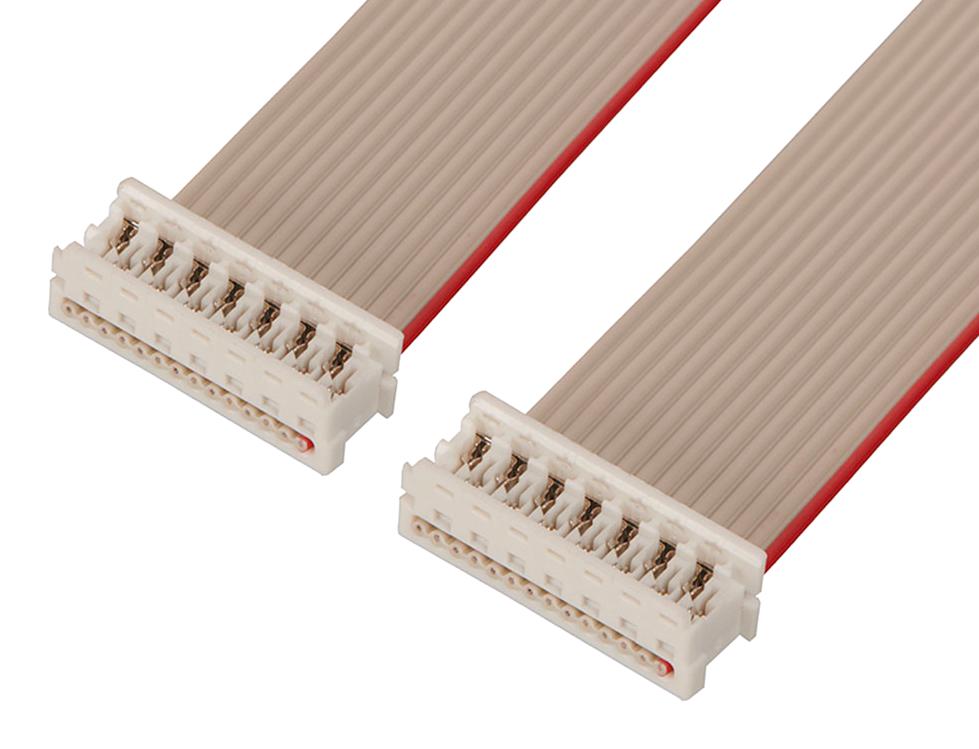

MOLEX 923151424 Ribbon Cable Assembly
The Picoflex ribbon cable assemblies are pre-made solutions in standard lengths and circuit sizes, featuring polarized connectors for correct mating. Constructed with a polyester housing, phosphor bronze contacts, and tin plating, they provide reliable connections with four contact points per circuit. Designed for quick deployment in electronics, automation, and medical applications, these assemblies support a maximum voltage of 250V and current of 1.2A. They operate within -40°C to +105°C and feature easy disconnection slots, insulation displacement termination, and a scalloped profile for precise cable positioning, ensuring durability and quality assurance.
MOLEX 923151424 Ribbon Cable Assembly Specifications:
- Cable Length: 240.00mm
- Circuits: 14
- Gender: Female-Female
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Plating: Tin
- Maximum Voltage: 250V
- Maximum Current per Contact: 1.2A
- Operating Temperature Range: -40°C to +105°C
- Wire Gauge: 28 AWG
- Pitch - Mating Interface: 1.27mm
- Durability: Minimum 30 mating cycles
- Compatibility: Picoflex PF50 headers
- Certification: UL and CSA
- Design Features: Polarized connector, locking slots, insulation displacement termination, scalloped profile
Buy the Molex 0923151424 – Reliable Ribbon Cable Assemblies for Industrial Applications
Purchase the Molex Ribbon Cable Assembly online now to ensure reliable, durable connections for your industrial, medical, or consumer electronics projects. Featuring polarized connectors, tin plating, and a compact design, this assembly supports 14 circuits over 240mm length, operating within -40°C to +105°C. With UL and CSA certification, it offers excellent performance with 1.2A current capacity and 250V voltage rating. Easy to connect and disconnect, it ensures quality and efficiency in your electronics assembly line. Secure your supply chain today!
Order your Molex Series92315 14-Circuit Ribbon Cable Assembly today and enhance your projects with dependable, high-quality interconnect solutions.
Frequently Asked Questions
Where can I buy MOLEX 923151424?
You can click on the BUY or RFQ button to purchase 923151424 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151424?
You can download the 923151424 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151424?
MOLEX
