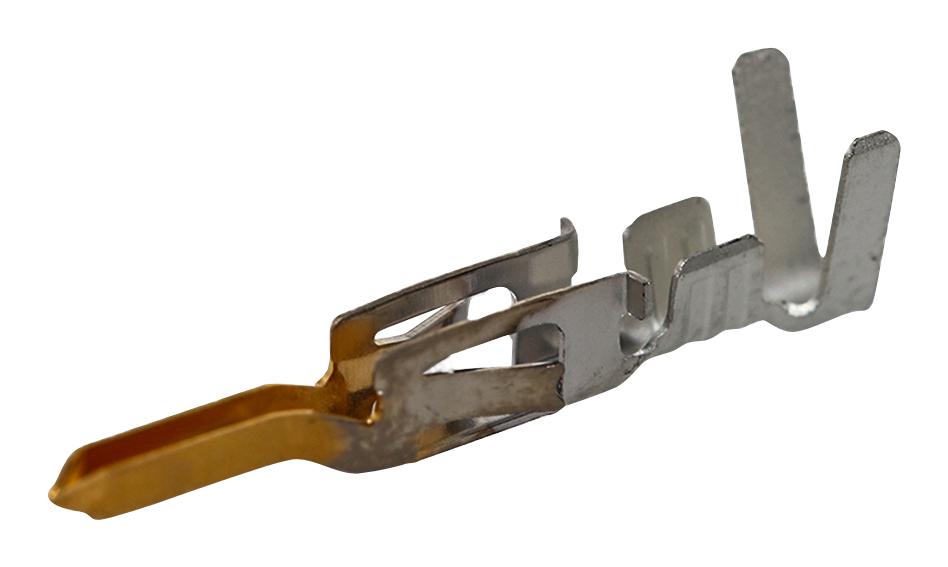

MOLEX 460121242 Mini-Fit Crimp Terminal
The Mini-Fit Plus Crimp Terminal is designed for power and wire-to-wire connections, rated for 13A per circuit with a maximum voltage of 600V. Suitable for 18-20 AWG wires, it features selective gold plating of 0.76um on the mating contact and tin plating on the termination. The terminal supports up to 250 mating cycles, ensuring durability in industrial applications. It is halogen-free, RoHS compliant, and ideal for use with Mini-Fit Jr. and Mini-Fit TPA plugs, offering reliable performance in power distribution and electronic assemblies.
MOLEX 460121242 Mini-Fit Crimp Terminal Specifications:
- Material - Plating Mating: Gold Series
- Material - Plating Termination: Tin
- Plating min - Mating: 0.762um
- Plating min - Termination: 2.540um
- Durability (mating cycles max): 250
- Wire Size: 18-20 AWG
- Wire Insulation Diameter: 1.65-2.95mm
- Maximum Current per circuit: 13A
- Voltage Rating: 600V
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Net Weight: 0.144g
- Packaging Type: Bag
- Appearance: Selective Gold Plating, Tin Termination
- Application: Power, Wire-to-Wire, Electronic Assemblies
- Certifications: RoHS, Halogen-Free
Buy the Molex 460121242 – Reliable Crimp Terminal for Industrial Applications
Purchase the Molex Mini-Fit Crimp Terminal online today to ensure secure, reliable, and high-quality connections for power and electronic applications. Designed for 18-20 AWG wires, this terminal features selective gold plating for excellent conductivity and durability. Its compact design supports up to 250 mating cycles, making it ideal for industrial, automotive, and electronic assembly use. With RoHS compliance and halogen-free construction, it offers safety and environmental benefits. Enjoy hassle-free ordering, fast shipping, and trusted quality by choosing to buy this essential connector online now!
Buy Molex 460121242 now and experience unmatched reliability and performance in power and electronic connections.
