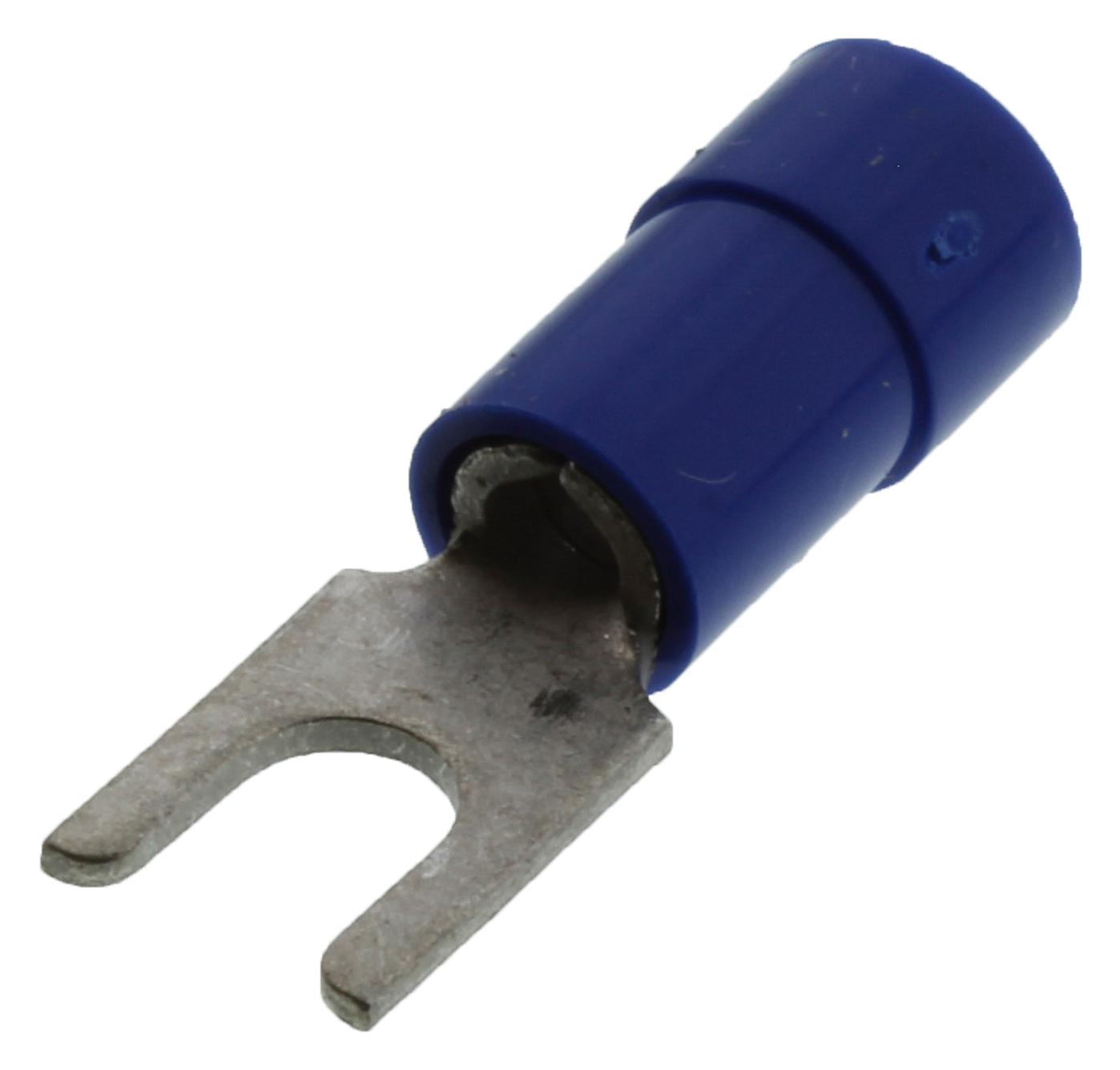

MOLEX 191310023 InsulKrimp Spade Block Terminal
The MOLEX 19131-0023 InsulKrimp Block Spade Tongue Terminal is a solderless termination solution designed for secure and reliable connections in a variety of applications. This terminal is specifically engineered for use with 14 to 16 AWG wire and features a stud size of 6 (M3.5), ensuring compatibility with standard mounting hardware. The InsulKrimp design provides a consistent and secure crimp, while the natural PVC insulation offers excellent electrical and environmental protection. Common applications include automotive, industrial equipment, and consumer electronics where a robust and reliable spade terminal is required. Its compact design and ease of installation make it a preferred choice for both manual and automated assembly processes.
MOLEX 191310023 InsulKrimp Spade Block Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Block Spade Tongue Terminal for 14 to 16 AWG Wire, Stud Size 6 (M3.5), Length 19.94mm
- series: 19131
- crimp_quality_equipment: Yes
- mil_spec: N/A
- product_name_short: InsulKrimp
- type: Spade Block
- upc: 800753101470
- barrel_type: Closed
- color_resin: Natural
- flammability: 94V-0
- insulation: PVC
- material_plating_mating: Tin
- net_weight_g: 0.713
- packaging_type: Bag
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- stud_size: 5-6 (M3-3.5)
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max_mm: 4.40
- wire_size_awg: 14, 16
- wire_size_mm2: 1.30-2.00
- engineering_number: BB-2471-06X
- drawing_product_specification: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001
- sales_drawing: BBCD20301
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- agency_certification_csa: LR18689
- agency_certification_ul: E32244
