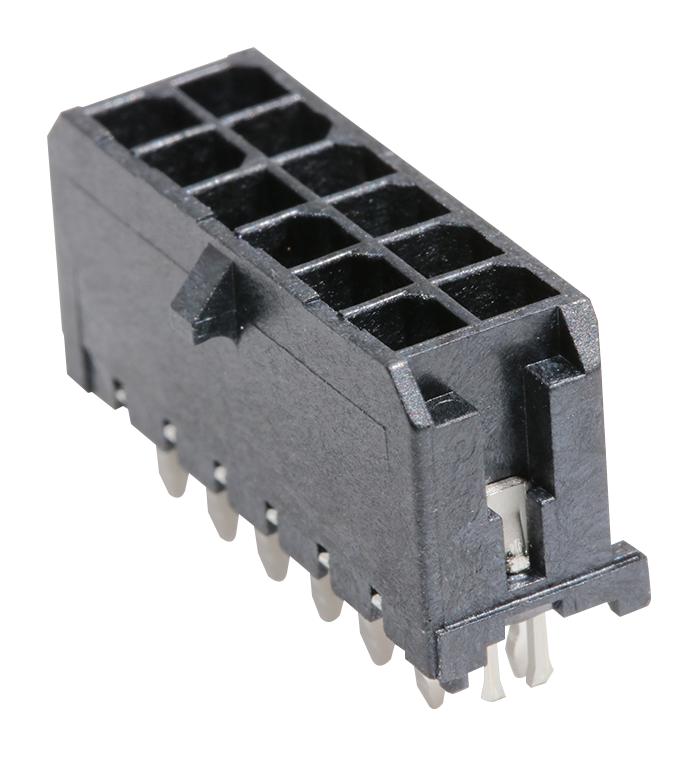

MOLEX 430451224 Power Connector
The Molex Micro-Fit 3.0 vertical header features a 3.00mm pitch with dual row configuration and 12 circuits, designed for power and wire-to-board applications. Made from high-temperature thermoplastic, it is glow-wire capable, UL and CSA certified, and compliant with RoHS standards. The connector supports PCB press-fit retention, with a maximum of 8.5A current per contact and a maximum voltage of 600V. Its resilient design withstands operating temperatures from -40°C to +105°C, ensuring durability and reliability in demanding environments.
MOLEX 430451224 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 12
- Material: High-Temperature Thermoplastic
- Flammability: Glow Wire Capable, GWIT 775°C, GWFI >850°C
- Current per Contact: 8.5A
- Voltage Rating: 600V
- Operating Temperature Range: -40°C to +105°C
- Mounting Type: Through Hole with Kinked Pin
- Contact Material: Metal with Tin Plating
- Color - Resin: Black
- Durability (Mating Cycles): Fully
- PCB Thickness: 1.60mm
- Packaging: Tray
- Shrouded: No
- Stackable: No
- Surface Mount Compatibility: No
- Polarized to PCB: Yes
Buy the Molex 0430451224 – Reliable Power Connector for Industrial Applications
Enhance your electronic assemblies with the Molex Power Connector featuring 12 circuits, a 3.00mm pitch, and robust high-temperature thermoplastic construction. This glow-wire capable connector is UL and CSA certified, ensuring safety and reliability. Designed for power and wire-to-board applications, it supports up to 8.5A per contact and voltage up to 600V. Its press-fit PCB retention and operating temperature range from -40°C to +105°C make it ideal for demanding industrial environments. Easily order online for fast delivery and integrate this high-quality connector into your projects for optimal performance.
Order your Molex Series43045 0430451224 today and give your projects the dependable quality they deserve with this durable, high-temperature power connector.
Frequently Asked Questions
Where can I buy MOLEX 430451224?
You can click on the BUY or RFQ button to purchase 430451224 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451224?
You can download the 430451224 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451224?
MOLEX
