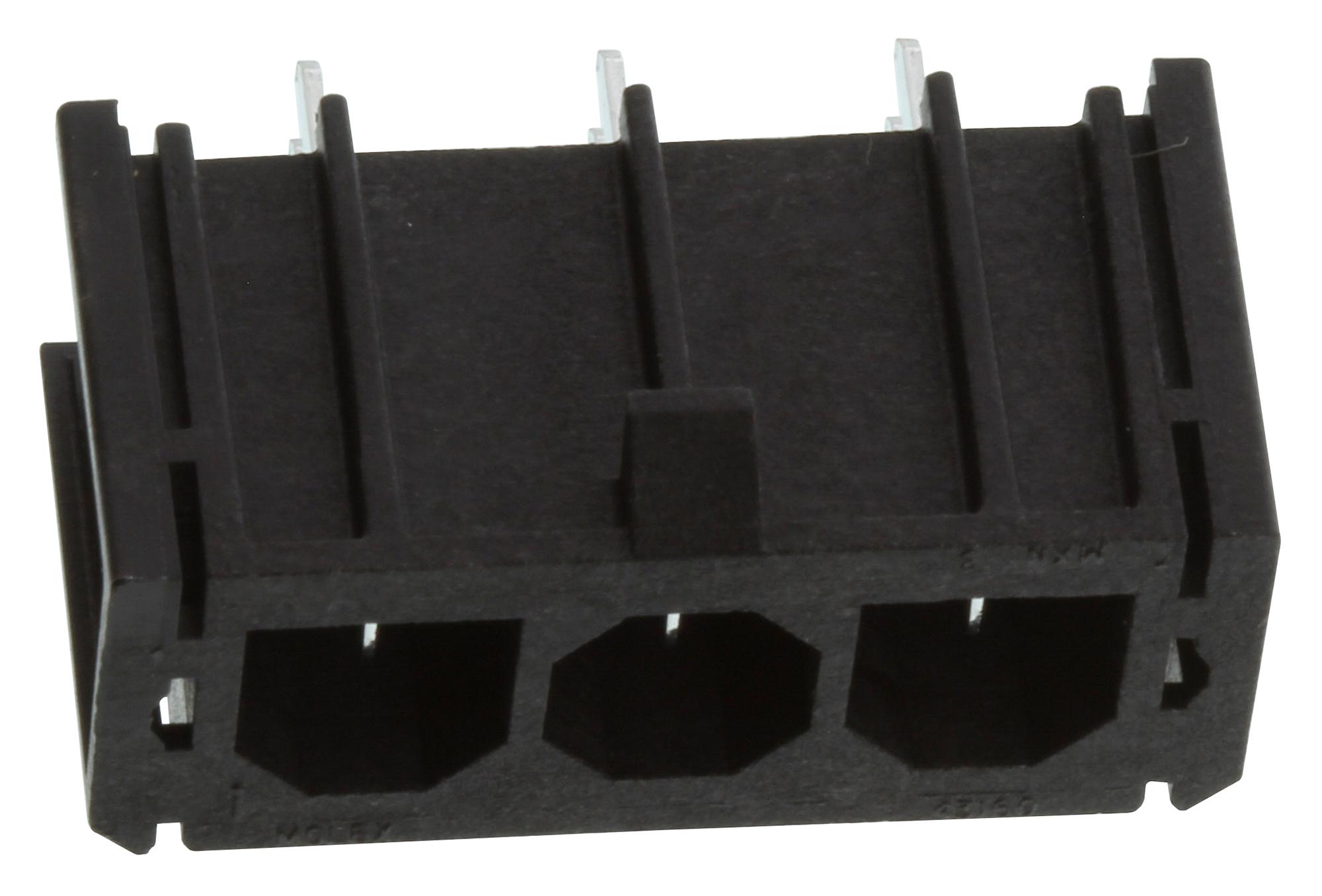

MOLEX 431600103 Power Connector
The Molex Sabre Power Connector is a high-performance vertical PCB header designed for reliable power connections in electronic assemblies. Capable of handling up to 18A and voltage up to 600V, it features 3 circuits with glow-wire capability for enhanced safety against fire hazards. Made from high-temperature thermoplastic with brass metal contacts plated in tin, it ensures durability and optimal conductivity. Suitable for PCB thickness of 1.60mm, it offers up to 25 mating cycles and features a low-profile 3.81mm pitch, making it ideal for space-constrained applications. Certification includes UL and CSA approvals, with RoHS compliance for environmentally conscious design.
MOLEX 431600103 Power Connector Specifications:
- Circuits: 3
- Color - Resin: Black
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Material - Metal: Brass
- Material - Plating - Mating: Tin
- Material - Plating - Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 3.789 grams
- First Mate / Last Break: Yes
- Durability (mating cycles max): 25
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Fully
- Orientation: Vertical
- PC Tail Length: 3.81mm
- PCB Thickness - Recommended: 1.60mm
- Temperature Range - Operating: -40°C to +75°C
- Termination Interface: Style - Through Hole
- Current - Maximum per Contact: 18.0A
- Voltage - Maximum: 600V
- Process Temperature max.: 235°C
- Max. Cycles at Max. Process Temperature: 5
- Process Duration at Max. Temperature: 5 seconds
Buy the Buy Molex Sabre Power Connector Part Number 0431600103 Online
Acquire the Molex Sabre Power Connector online today for your electronic project or manufacturing needs. This high-quality, glow-wire capable header offers excellent durability with 25 mating cycles, handling up to 18A and 600V, ensuring reliable power distribution in complex assemblies. Made with high-temp thermoplastic and tin-plated brass contacts, it guarantees optimal conductivity and safety. Its PCB compatibility with 1.60mm thickness and vertical orientation makes it perfect for space-constrained designs. Environmentally compliant with RoHS, UL, and CSA certifications, this connector combines safety, performance, and longevity.
Get Molex 0431600103 today—designed for high power and durability, ideal for reliable electronic power connections in demanding applications.
Frequently Asked Questions
Where can I buy MOLEX 431600103?
You can click on the BUY or RFQ button to purchase 431600103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 431600103?
You can download the 431600103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 431600103?
MOLEX
