MOLEX 191600047 Wire Splice

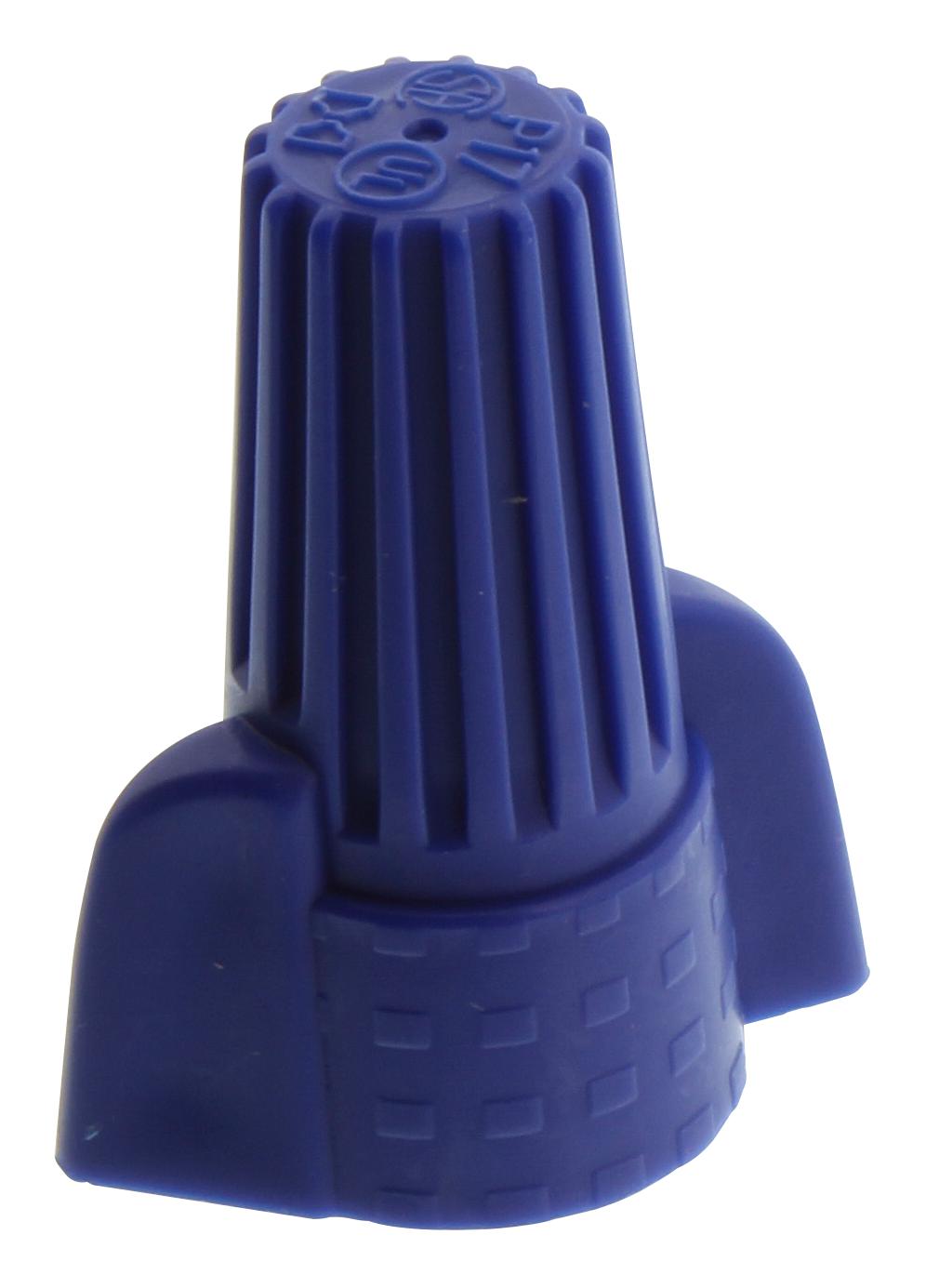

The Wing Lock Splice for 6-14 AWG wire is a blue, halogen-free, nylon-insulated connector designed for reliable wire splicing in electrical applications. It features a closed barrel type and is rated for a maximum voltage of 600V with an operating temperature of 105°C. Crafted with copper metal and tin plating, it ensures secure and corrosion-resistant electrical connections. Suitable for various wire sizes from 6 to 14 AWG, this splice offers easy installation and compliance with RoHS standards. Ideal for industrial wiring, automation systems, and electrical assembly tasks.
MOLEX 191600047 Wire Splice Specifications:
- Wire Size: 6-14 AWG
- Voltage - Maximum: 600V
- Temperature Range - Operating: 105°C
- Insulation Material: Nylon (PA)
- Material - Metal: Copper
- Material - Plating: Tin
- Color: Blue
- Barrel Type: Closed
- Wire Insulation Diameter: 18.80 mm max.
- Packaging Type: Bag
- Flammability: 94V-2
- RoHS Compliance: Yes
- Agency Certification: UL E32244, CSA LR18689, EU ELV
- Nylon insulation, copper metal, tin plating, rated for high-current connections with reliable splice design.
Buy the Molex Series 19160 Wing Lock Splice: 0191600047
Purchase the Molex Wing Lock Splice for 6-14 AWG wire today and ensure reliable, high-quality electrical connections. Designed with a closed barrel, copper metal, and tin plating, this splice delivers excellent corrosion resistance and secure attachment. Its blue halogen-free nylon insulation ensures safety and insulation integrity at operating temperatures up to 105°C. Rated for 600V, it is ideal for industrial wiring, automation systems, and electrical assemblies. Shop online now for the trusted quality and durability that Molex provides for your wiring needs.
Get Molex 0191600047 today—built for secure and durable wire splicing in industrial and automation applications.
Frequently Asked Questions
Where can I buy MOLEX 191600047?
You can click on the BUY or RFQ button to purchase 191600047 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191600047?
You can download the 191600047 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191600047?
MOLEX
