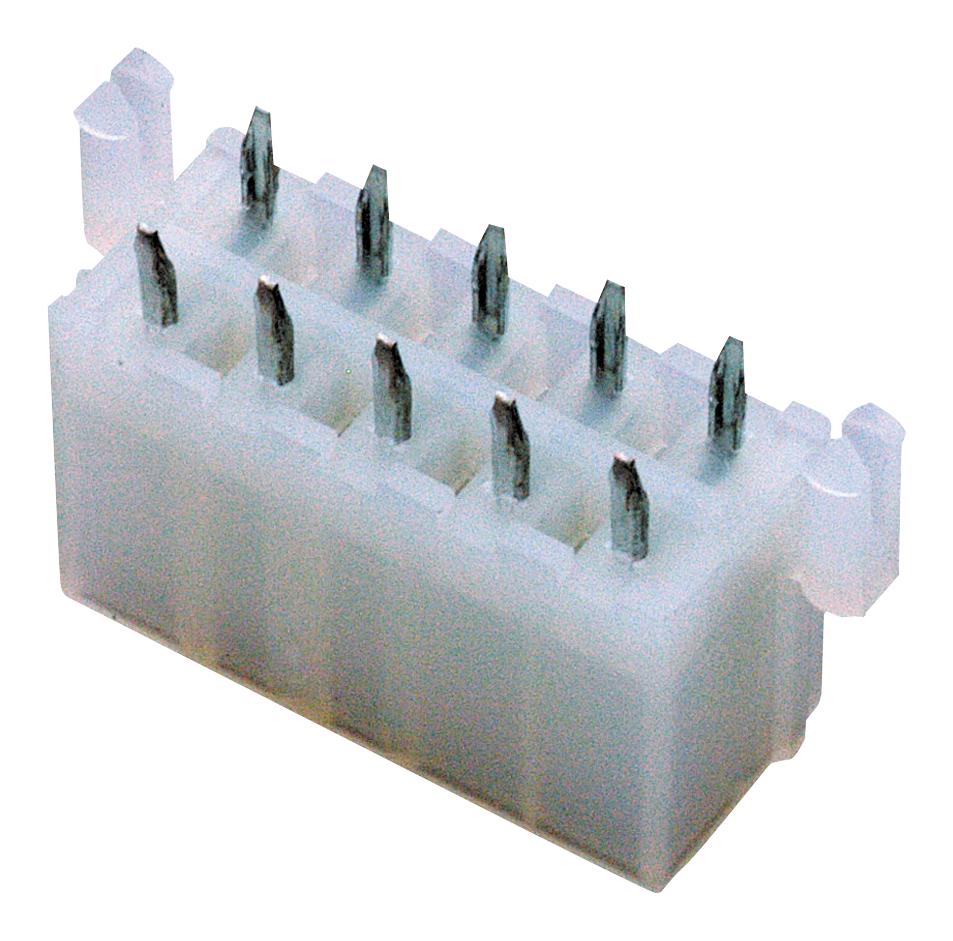

MOLEX 39299109 Power Connector
The Mini-Fit Jr. Power Connectors are vertical headers with a 4.20mm pitch, dual row, and 10 circuits, designed for wire-to-board power applications. These connectors feature snap-in plastic peg PCB locks, gold plating, and are made from nylon with matte tin finish. They support operating temperatures from -40°C to +105°C, handle currents up to 9.0A per contact, and withstand voltages up to 600V. Suitable for PCB thicknesses of 1.60mm, these shrouded connectors are RoHS compliant and designed for durability with a maximum of 10 mating cycles.
MOLEX 39299109 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Rows: 2
- Circuits: 10
- Color - Resin: Natural
- Material - Resin: Nylon
- Plating - Mating: 0.762um Gold
- Plating - Termination: 2.540um
- Durability: Up to 10 mating cycles
- Operating Temperature Range: -40°C to +105°C
- Current Max: 9.0A per contact
- Voltage Max: 600V
- PCB Thickness - Recommended: 1.60mm
- Solder Process: Wave, max temperature 240°C
- Termination Interface: Through Hole
- Surface Mount Compatible: No
- Shrouded: Fully
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Packaging: Tray
Buy the Molex Series Mini-Fit Jr Power Connectors: 0039299109
Purchase Molex 0039299109 online for a high-quality, power-efficient connector designed for robust wire-to-board applications. Its dual row, 10 circuit design with 4.20mm pitch ensures secure connections. Made from Nylon with a matte tin finish, it supports temperatures from -40°C to +105°C, carries up to 9.0A per contact, and withstands voltages up to 600V. Perfect for industrial electronics, automation, and power distribution systems, this RoHS compliant connector guarantees long-lasting performance and easy installation through through-hole termination.
Get Molex 0039299109 today—built for power transmission, durability, and reliable wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 39299109?
You can click on the BUY or RFQ button to purchase 39299109 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299109?
You can download the 39299109 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299109?
MOLEX
